TMS374 ECU DECODER
Auto ECU Decoder TMS374 TMS 374 frequency sweeper TMS-374 ECU Decoding tool for renault/Peugeot/Citroen
TMS374 ECU Decoder For Renault Peugeot Citroen Hyundai Kia Immo Killer Matiz
Tanpa Laptop bisa digunakan langsung
A handy tool to have that will decode an all the above ecu's to a new state without the need of a laptop!

Introduction:
This Tool is a frequency sweeper with 5V square wave output (Duty cycle 50%, effective frequency range from over 10kHz (max 50kHz) to 50Hz). This tool can be also considered as a MCU version of the software TMS-374 Decoder ECU. The only difference between the two tools is that the MCU version works without a PC. A small MCU is used to generate the pulses instead of the PC RS232 Tx line.
The TMS 374 software is in fact a simple frequency sweeper with an effective range from about 2000Hz to about 100Hz. The Tiny sweeper does exactly the same but much more better (bigger range). After powering the device on - the LED should blink twice. Pressing the button will start the sweep procedure. LED ON - means there are pulses on the output. After reaching the lowest frequency the LED goes off and the mcu stops the generation.

Connection diagram:
+ : 12v DC
- : GND
S : signal wire

Manual:
After powering the device on - the LED should blink twice. The sweeping process starts as power is supplied to the device. LED ON - means there are pulses on the output. After reaching the lowest frequency the LED goes off and the mcu stops the generation.

* Connect the GND line to any suitable GND on the ECU via the small grabber.
* Connect the Data line to the Reset pin on the EPROM via the small grabber.
* Power the ECU and then the sweeper, the sweeper will flash twice on power up.
* Press the button and the device will start sweeping, once the LED turns off your done.
* Cut the immo data line on the ECU before re-fitting back to car.

TMS-374 Decoder ECU info

The sweeper should work with the following ECUs:

Renault SIEMENS Fenix 3 and 5
Renault Megane 1400cc 8v
Renault Megane 1600cc 8v
Renault Megane 2000cc 8v
Renault Megane 2000cc 16V
Renault Megane Scenic 1400cc 8v
Renault Megane Scenic 1600cc 8v
Renault Megane Scenic 2000cc 8v
Renault Sefrane 2000cc 16V
Renault Laguna 2000cc 8v
Renault Laguna 2000cc 16v
Renault Espace 2000cc 8v

Renault SAGEM SAFIR 1 and 2
Renault Clio 1200cc 8V
Renault Clio 1400cc 8V
Renault Clio 1600cc 8V
Renault Clio 2000cc 16V Williams
Renault Laguna 1800cc 8V
Renault Laguna 2000cc 8V
Renault Laguna 1800cc 16V
Renault Laguna 2000cc 16V
Renault Twingo 1200cc 8V

NOTE: If reset pin is connected to ground then it must be lifted or the track cut before decoding. This can be re-attached after decoding the ecu. As a rule of thumb keep the power connected to the ECU for a futher five minutes after the decoder has completed the decoding process.

Sagem SL96 Psa
Peugeot 306 1400cc 8V
Peugeot 306 1600cc 16V
Peugeot 306 1800 16V
Peugeot Ranch 1400 8V
Citroen Berlingo 1400cc 8V
Citroen Xrara 1400cc 8V
Citroen Xrara 1800cc 16V

DAEWOO SIEMENS
Daewoo Matiz 800cc

HYUNDAI SIEMENS
Hyundai Coupe 1600cc 16V
Hyundai Coupe 2000cc 16V

KIA SIEMENS
Kia Rio 1300 16V
Kia Rio 1500 16V

MAGNETI MARELLI
1AP20, 1AP40, 1AP41, 1AP43, 1AP80, 1AP81, 1AP83 1AP90,
Citroen Berlingo 1800cc 8V
Citroen Saxo 1400cc 8V
Citroen Saxo 1600cc 16V
Citroen Xara 1400cc 8V
Citroen Xara 1800cc 8V
Citroen Xara 2000cc 16V
Citroen ZX 1400cc 8V
Peugeot 106 1400cc 8V
Peugeot 106 1600cc 8V
Peugeot 106 1600cc 16V
Peugeot 206 1100cc 8V
Peugeot 206 1400cc 8V
Peugeot 306 1400cc 8V
Peugeot 306 1600cc 8V
Peugeot 306 1800cc 8V
Peugeot 405 1800cc 8V
Peugeot 406 1800cc 8V
Peugeot Partner 1800 8V


TMS-374 1AP\SAGEM\SIEMENS
Procedure:
Simply power the ECU and device using a suitable 12V power supply. Connect the GND cable to a good ground source on the ECU and then the data line to the Reset Pin on the flash 27c512 or28F512 as shown in the diagram.
Start the device and wait for it to finish its cycle (the led will turn off). At this point the ECU has been decoded and put into a new state. The Immo line will need to be disconnected before the ECU is re-fitted back to the car.

CENTRALINE SAGEM SAFIR RENAULT 35 PIN
PIN 18 --- 12v+
PIN 4\34 --- GND
PIN 30 Immo data line (cut)

CENTRALINE SAGEM SAFIR 1 RENAULT 55 PIN
PIN 1 --- 12v+
PIN 2\3\18 --- GND
PIN 37 Immo line (cut)



CENTRALINE SAGEM SAFIR 2 RENAULT 55 PIN
PIN 1 --- 12v+
PIN 2\3\18 --- GND
PIN 37 Immo data line (cut)


CENTRALINE SIEMENS DAEWOO (MATIZ) 55 PIN
PIN 32\24 --- 12V+
PIN 2\3 --- GND
PIN 11 Immo data line (cut)

CENTRALINE SIEMENS RENAULT 55 PIN
PIN 32\24\1 --- 12V+
PIN 2\3 --- GND
PIN 37 Immo data line on 1600 cc (cut)
PIN 35 Immo data line on 1800cc\2000 cc (cut)


CENTRALINE 1AP 55 PIN
PIN 35\13 --- 12v+
PIN 54\36 --- GND
PIN 27\48 Immo data line (cut)


CENTRALINE SIEMENS HUNDAY 55 PIN

CENTRALINE SAGEM SL96 PSA
Pin 1 --- 12v+
Pin 2\3\18 --- GND
Pin 27\48 Immo data line (cut)

TMS-374 ECU sweeper should work with the following ECUs:

Renault SIEMENS Fenix 3 and 5
Renault Megane 1400cc 8v
Renault Megane 1600cc 8v
Renault Megane 2000cc 8v
Renault Megane 2000cc 16V
Renault Megane Scenic 1400cc 8v
Renault Megane Scenic 1600cc 8v
Renault Megane Scenic 2000cc 8v
Renault Sefrane 2000cc 16V
Renault Laguna 2000cc 8v
Renault Laguna 2000cc 16v
Renault Espace 2000cc 8v
Renault SAGEM SAFIR 1 and 2
Renault Clio 1200cc 8V
Renault Clio 1400cc 8V
Renault Clio 1600cc 8V
Renault Clio 2000cc 16V Williams
Renault Laguna 1800cc 8V
Renault Laguna 2000cc 8V
Renault Laguna 1800cc 16V
Renault Laguna 2000cc 16V
Renault Twingo 1200cc 8V
NOTE: If reset pin is connected to ground then it must be lifted or the track cut before decoding. This can be re-attached after decoding the ecu.
As a rule of thumb keep the power connected to the ECU for a futher five minutes after the decoder has completed the decoding process.
Sagem SL96 Psa
Peugeot 306 1400cc 8V
Peugeot 306 1600cc 16V
Peugeot 306 1800 16V
Peugeot Ranch 1400 8V
Citroen Berlingo 1400cc 8V
Citroen Xrara 1400cc 8V
Citroen Xrara 1800cc 16V
DAEWOO SIEMENS
Daewoo Matiz 800cc
HYUNDAI SIEMENS
Hyundai Coupe 1600cc 16V
Hyundai Coupe 2000cc 16V
KIA SIEMENS
Kia Rio 1300 16V
Kia Rio 1500 16V
MAGNETI MARELLI
1AP20, 1AP40, 1AP41, 1AP43, 1AP80, 1AP81, 1AP83 1AP90,
Citroen Berlingo 1800cc 8V
Citroen Saxo 1400cc 8V
Citroen Saxo 1600cc 16V
Citroen Xara 1400cc 8V
Citroen Xara 1800cc 8V
Citroen Xara 2000cc 16V
Citroen ZX 1400cc 8V
Peugeot 106 1400cc 8V
Peugeot 106 1600cc 8V
Peugeot 106 1600cc 16V
Peugeot 206 1100cc 8V
Peugeot 206 1400cc 8V
Peugeot 306 1400cc 8V
Peugeot 306 1600cc 8V
Peugeot 306 1800cc 8V
Peugeot 405 1800cc 8V
Peugeot 406 1800cc 8V
Peugeot Partner 1800 8V
TMS-374
1AP\SAGEM\SIEMENS

Berminat Hubungi   :
Nama : Agus yulianto
Alamat : Puri Astapada Indah 2 Blok K/6 RT/RW 03/08 Plosogeneng
 Jombang, 61416 Jawa Timur
Telp : Simp. 081332787811

Web  :
www.obd2jatim.com


Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Commander 2.0 Key Programmer USB Super Toyota K + CAN 2.0

Commander 2.0 Key Programmer USB Super Toyota K + CAN 2.0

Connecting with all electronic control modules in the vehicle. Working by K and CAN bus diagnostic connection.

Function :
• For all electronic control units read
• Clear Error DTC
• Clear Memories Pending
• Read Standart,
• Read history memory.
• Actuator test
• Current data.
• Keyprogramming immo
• Keyprogramming smart key for vehicles
• Etc

Special Function :
Connect with some control module.
Select vehilcle model and scan modules.
Choose some special function - Immo reset and key programming.
Specification:
Key programming immo and smart key for vehicles


Menghubungkan dengan semua modul kontrol elektronik di dalam kendaraan. Bekerja dengan K dan CAN BUS koneksi diagnostik.

fungsi
• Baca semua unit kontrol elektronik
• Hapus Kesalahan DTC
• Hapus Kenangan Tertunda
• Baca Standart,
• Baca memori sejarah.
• Tes Actuator
• Data saat ini.
• Keyprogramming immo dan
• Keyprogramming Smart Key
• Dll

Special Function :
Connect with some control module.
Select vehilcle model and scan modules.
Choose some special function - Immo reset and key programming.
Specification:
Key programming immo and smart key for vehicles

Package List:
• 1 K+Can Main Unit
• 1CD


Car Maker :
• Toyota Rav4
• Toyota Yaris (smart key)
• Toyota Auris (smart key)
• Toyota Land Cruiser 100
• Toyota Land Cruiser 120
• Toyota Prado
• Toyota 4 Runner
• Toyota Camry (2004+)
• Toyota Corolla (2007+)
• Toyota Prado
• Toyota Hilux
• Toyota Prius
• Toyota Avalon
• Lexus LX470
• Lexus LX570
• Lexus RX300
• Lexus RX330
• Lexus RX350
• Lexus RX400
• Lexus RX400h
• Lexus SC430
• Lexus GS300
• Lexus GS430
• Lexus GS450
• Lexus ES350
• Lexus IS220
• Lexus IS250
• Lexus IS350
• Lexus LS430
• Lexus LS460
• Scion


Berminat Hubungi  :
Nama : Agus yulianto
Alamat        : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
                          Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Scan Mobil Murah Super VCS Universal VCS dan VDM VCS+VDM 2 in 1

Scan Mobil Murah Super VCS Universal VCS dan VDM VCS+VDM  2 in 1

Rp. 2.500.000


Wireless Super VCS Car Diagnostic Tool Universal Diagnostic Tool Super VCS Wireless Automotive Diagnostic Tool

Super VCS Wireless Compact  Diagnostic tool, VCS dan VDM VCS+VDM  2 in 1

Specifications
MCU:  ARM7 processor, 66MHz
Input Voltage:  DC 8-18V
Communication Mode:  USB and Wifi
Storage Temperature:  -30 to 120 C(-22 to 248 F), Relative Humidity: <90%
Operating Temperature:  -30 to 120 C(-22 to 248 F), Relative Humidity: <90%

Scanner  Super VCS , Diagnostic tool VCS+VDM 2 in 1 Super
1. Merupakan kombinasi dari Scanner dan Scanner VDM,
2. Fungsi hampir sama dengan VCS ataupun VDM.
3. Bahasa: Inggris
4. WIFI dan USB Connection: The WIFI jarak kurang lebih 50m
5. Basic win 32 Bit xp dan win 7
6. Langsung digunakan Tidak perlu aktivasi
7. atau Pendaftaran sebelum menggunakan.
8. Fungsi dikenal sangat stabil.
9. vcs super Meliputi 44 Merek Mobil:

Mobil Eropa Model :
Audi, Benz, BMW, Citroen, Fiat, Ford Uni Eropa, Jaguar, Lancia, LandRover, MINI, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Vauxhall, Volvo, VW.

Asia Mobil Model :
Acura, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Perodua, Proton, Subaru, Suzuki, Toyota

Mobil Australia Model : Ford AU, Holden

Amerika Model :
Chrysler, Ford, GM.

Mobil China Model :
Chery, Geely, GWM


Super VCS Introduction
The Super VCS Compact Diagnostic Partner is the combanation of vcs and vdm. It is ingeniously designed to recreate the functionality of the OEM tools used by automotive manufacturers’ dealers, empowering independent garage shops to provide complete servicing in their own shops, including data stream, reading and clearing of diagnostic trouble codes, and immobilizer key coding, etc.

Super VCS Fungsi diantaranya :
• Quick Test,
• Read Ecu Info.
• Read Dtcs,
• Erase Dtcs,
• Clear Learning Value,
• Data Stream,
• Actuations,
• Read Freeze Frame Data,
• Read/Write Vin,
• Basic Reset,
• Control Unit Adaptations,
• Throttle Adaptations,
• Air Bleeding,
• Level Calibration,
• Theft Alarm Reset,
• Key Programming,
• Immobilizer Coding
• Component Activation
• Oil Change,
• Idle Speed Learning,
• Idle Speed Adjustment,
• Ignition Timing Adjustment,
• Camshaft Timing Control Learning,
• Maintenance Functions,
• Boot Mode
• ECU Initial startup,
• ECU initialization

• Super VCS Supported Systems:
ME-Motor electronics,
• CDI-Common Rail Diesel Injection,
• ETC-Electronic transmission control,
• ESM-Electronic selector module,
• SBC-Sensotronic Brake Control,
• ESP-Electronic stability program,
• BAS-Brake assist, Suspension,
• TPC-Tire pressure monitor,
• Airbag,
• CGW-Central gateway,
• EIS-Electronic ignition switch,
• OCP-Overhead control panel,
• UCP-Upper control panel,
• XALWA-Xenon headlamp,
• HRA-Headlamp range control,
• ATA-Anti-theft alarm system,
• IC-Instrument cluster,
• ASSYST-Active Service System,
• SCM-Steering column module,
• EPS-Electrical power steering,
• PTS-Parktronic system,
• EPB-Electric parking brake,
• COMAND/AUDIO, CD/DVD,
• TV tuner,
• CTEL-Cellular telephone,
• DCM-Door control module,
• ESA driver-Electric seat adjustment driver,
• ESA passenger-Electric seat adjustment passenger,
• AAC-Air conditioning,
• WSS-Weight sensor system,
• SVMCM-Special vehicle multifunction control module.
• Can check out the year and model of the vehicles automatically and quickly.


Super VCS Features
Supporting ISO 9141-2,
K/L line,
SAE-J1850 VPW,
 SAE-J1850 PWM,
CAN ISO 11898,
ISO15765-4 protocols.
High-speed,
medium speed and low speed CAN-BUS,
Single CAN-BUS diagnosis protocols is supported.

Spesifikasi
• MCU: prosesor ARM7, 66MHz
• Input Voltage: DC 8-18V
• Komunikasi Mode: USB dan Wifi
• Suhu Penyimpanan: -30 sampai 120 C (-22 ke 248 F), Kelembaban Relatif: <90%
• Suhu operasi: -30 sampai 120 C (-22 ke 248 F), Kelembaban Relatif: <90%


Super VCS Daftar Paket :
• 1pc x Unit super VCS utama dengan kabel OBDII
• 1pc x USB Kabel
• 1pc x Software CD
• 1pc kotak x karton


Berminat Hubungi  :
Nama  : Agus yulianto
Alamat  : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
     Plosogeneng Jombang, 61416 Jawa Timur
Telp          : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Reset Inspection and Oil Service for BMW

Reset Inspection and Oil Service for BMW

 Rp 250.000

 Reset Inspection and Oil Service
16 pin male connnector
Suitable for over 75 different BMW and MINI models with OBD2 diagnostic socket from build 2000, such as BMW E39,E46, E50, E52, E53, Mini ,E38, X5, Z4

Main Features:

Plug the device into the OBD2 socket of your car;
All LEDs will flash and then stay on;
Turn ignition key to enable the board electronic but don't turn on the motor;
Press the button for the operation you want to perform;
The LED of the choosen operation will turn on and the other LEDs will be off;
LEDs will perform a light chain which means reset is done.

Package include:
 1 X Reset Tool for BMW


Berminat Hubungi :
Nama : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
            Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

ECU ECM Program Willem EPROM Programming PCB 5.0M

ECU ECM Program Willem EPROM Programming PCB5.0M

Features and Advantages
Dapat memprogram EPROM, EEPROM, FLASH, Serial EPROM, Serial Flash Dan lain-lain Tegangan  (Vpp 3.6V, 12.5V, 21V, 25V)

Versi hardware adalah  PCB50 dan mendukung perangkat 3V3-3V6 SPI Flash. * Chip SPI , Hal ini dapat memprogram hingga 10% lebih cepat dari Willem PCB4.5C, 20% lebih cepat dari Willem EPROM Programmer (PCB3.5C) / (PCB4C) dan 50% lebih cepat dari PCB3B yang +,  Menggunakan catu daya dari port USB


Mengapa Alat ini sangat dibutuhkan ?? mengingat kegunaanya diantaranya :
• Refreshing, Upgrading, Programming BIOS chips.
• Motor Vehicle memory device, MEMCAL or ECU code reading, writing.
• Copier, Fax machine, Printer main board maintaining or repairing.
• VCD, DVD, Color TV maintaining or repairing.
• Neon Light Controller code writing.
• MCU development - programming for MCS-51 series, AVR series and PIC series MCU.
• Repairing, reading, writing, programming PC motherboard BIOS Chips.
• Upgrade the chip in your cars computer.
• Modify the chips in your Xbox or PlayStation Console.
• Programming MicroChip PIC Micros.
• Programming ATMEL AVR Micros.
• Flash a 3V6 SPI device on your motherboard or HDD.
• Refreshing, Upgrade, chip BIOS Programming.

All Software is included on CD
Software Version 0.98D12 - for PCB5.0 is now released.
Software Version 0.98D10 - for PCB5.0 is now released.
Software Version 0.98d9 - for PCB5.0, in stable beta now - adds support for 3V6 SPI Flash devices and includes many improvements.*
Software Version 0.98d6 - update June 2006 (will work with PCB4.5C - not for PCB5.0)
Software Version 0.98d5 - update September 2005 (called PCB45-0.98D5 - for use with the PCB5.0)
Software Version 0.98d4 - update August 2005
Software Version 0.98d3 - more support for PIC micro's
Software Version 0.98d2 - further support for 3.5/3.7/4c
Software Version 0.98d1 - stability and support for 3.5/3.7/4c
Software Version 0.98d - some fixes for XP
Software Version 0.98c - adds lots of support for PIC micro's.
Software Version 0.98a ( 0.98a [alpha] )
Software Version (0.98ap) *** CAN UNLOCK AM29F040B ***
NEW SPI FLASH DEVICES SUPPORTED
WINBOND
W25X010,W25X020,W25X040,W25X080,W25X16,W25X32,W25X64

MXIC
MX25L512,MX25L1005,MX25L2005,MX25L4005A,MX25L8005A,MX25L1605,MX25L3205
MX25L6405

EON
EN25B05 , EN25B10 , EN25B20 , EN25B40 , EN25B80 , EN25B16 , EN25B32 , EN25B64EN25P05 , EN25P10 , EN25P20 , EN25P40 , EN25BP80 , EN25P16 , EN25P32 , EN25P64, EN25D80 , EN25D16 , EN25F20 , EN25F40 , EN25F80 , EN25F16

AMIC
A25L05P-B,A25L10P-B,A25L20P-B,A25L05P-T,A25L10P-T,A25L20P-T,A25L512
A25L010,A25L020,A25L040,A25L080;,A25L016,A25L032

pFLASH
Pm25LV512,Pm25LV010,Pm25LV020,Pm25LV040,Pm25LV080,Pm25LV016

Numonyx (ST)
M25P05,M25P10,M25P20,M25P40,M25P80,M25P16,M25P32,M25P64
M25PE10,M25PE20,M25PE40,M25PE80,, M25PX80,M25PX16,M25PX32,M25PX64

SPANSION
S25FL004A/040A,S25FL008A,S25FL040A-T,S25FL040A-B,S25FL016A,S25FL032A
S25FL064A

ATMEL
AT25DF021,AT25DF041A,AT25DF081,AT25DF081A,AT25DF161,AT25DF321A
AT25DF641,AT26DF041,AT26DF161A,AT26DF321


other Willem EPROM Programmer can support CHIPS(EPROM,EEPROM,FLASH,I2C,PIC,MCS-51,AVR, 93Cxx, ISP)

EPROM
27C64 , 27C128 , 27C256 , 27C512 , 27C010 , 27C020 , 27C
040 , 27C1001, M27C1001 , M27C2001 , M27C4001, 27C080 (A19) , M27C801 , M87C257, 2716(Vpp25V) , 2732 , (adapter DIP24), 2764 , 27128 , 27256 , 27512 , 27010,  Vpp12.5V (21Vpp Modify Circuit

EEPROM


28C65 , 28C64 , 28C128 , 28C256 , 28C512 , 28C010 , 28C020 , 28C040
M28C16A/17A (DIP28), (Adapter or Jumper) 28C16,XLS2816 (DIP24)

FLASH Memory
28F64 , 28F128 , 28F256 , 28F512 , 28F010 , 28F020, MX26C1000 , MX26C2000 , MX28F1000 , MX28F2000, Am28F256A , Am28F512A , Am28F010A , Am28F020A
New command erase/prog.)-- intel ---

FLASH Memory
i28F001BX , 28F004 , 28F008 , 28F016, 29F64 , 29F128 ,29F256 , 29F512 , 29F010 , 29F020 , 29F040 , 29F080, 29F001 , 29F002 , 29F004 , 29F008 , 29F016 , 29F032 , V29C51002T , 29LV040

Serial (I2C) EEPROM
24Cxx, 24C02 , 24C04 , 24C08 , 24C16 , 85C72 , 85C82 , 85C92
24C32 , 24C64 , 24C128 , 24C256 , 24C512

Microwire EEPROM
<------ Data 8bit ----->(pin 6 ->ORG. [Schematic connect to GND]), 93C06 , 93C46 , 93LC46 , 93C56 , 93C57, 93C66 , 93C76 , 93C86 (8bit) , AT59C11 , AT59C22 , AT59C13, CAT35C102 , CAT35C104 , CAT35C108 (pullup pin7)
<------Data 16bit------> (pin 6 ->NC [No Connect]), 93C06A , 93C46X , 93C56 , 93C66 , 93C76 , 93C86 (NS)

Microchip PIC
16C84 , 16F84 ,16F84A , 16F627/16F628, 12C508/A , 12C509/A , 12CE518 , 12CE519 , 16C505, 16C620 , 16C621 , 16C622 , 16CE623 , 16CE624 , 16CE625 , 16C710/711
---ICSP connector----, 16F870 , 16F871 , 16F872 , 16F873 , 16F874 , 16F876 , 16F877 PIC16F873A , PIC16F874A , PIC16F876A , PIC16F877A, -Add PIC microchip 14bit, PIC12F629 , PIC12F675 , PIC16F630 , PIC16F676 , PIC12F635 , PIC12F683 , PIC16F636 , PIC16F684 , PIC16F688, PIC16F72/73/74/76/77 , PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716, -Add microchip 14bit,12bit OTP PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674, PIC16C61/71 , PIC16C62/64/65/73 ,, PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67, PIC16C72/72A/73A/74A/74B/76/77 , PIC16C620/620A/621/621A/622/622A, PIC16CE/623/624/625 ,, PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926, PIC16C554/556/557/558 , PIC16C432/433 , PIC16C717/770/771/781/782, -Additional PIC microchip 14bit
PIC12F629/675 , PIC16F630/676 , PIC12F635/683 , PIC16F636/684/688 ,, PIC16F72/73/74/76/77 ,, PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716, -Additional microchip 14bit OTP., PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674 , PIC16C61/71 ,,PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67 , PIC16C72/72A/73A/74A/74B/76/77 ,PIC16C620/620A/621/621A/622/622A , PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926 , PIC16C554/556/557/558 , PIC16C432/433 ,
PIC16C717/770/771/781/782
-Additional PIC microchip 12bit (FLASH memory)
PIC12F508/509 , PIC10F200/202/204/206 , PIC16F505 , PIC16F54/57, -Add PIC18Fxxx
PIC18F242 , 18F248 , 18F252 , 18F258 , 18F442 , 18F448 , 16F452 , 16F458,PIC18F1220 , 18F2220 , 18F4220 , 18F1320 , 18F2320 , 18F4320, PIC18F6520 , 18F6620 , 18F6720 , 18F8520 , 18F8620 , 18F8720, PIC18F2331 , 18F2431 , 18F4331 , 18F4431
PIC18F6525 , 18F6621 , 18F8525 , 18F8621
PIC18F6585 , 18F6680 , 18F8585 , 18F8680
PIC18F2439 , 18F2539 , 18F4439 , 18F4539
PIC18F6410 , 18F8410 , 18F6490 , 18F8490
-Additional PIC18Fxxx
PIC18F2410 , PIC18F2420 , PIC18F2455
PIC18F2510 , PIC18F2515 , PIC18F2520 , PIC18F2525 , PIC18F2550 , PIC18F2585
PIC18F2610 , PIC18F2620 , PIC18F2680
PIC18F4410, PIC18F4420 , PIC18F4455
PIC18F4510 , PIC18F4515 , PIC18F4520 , PIC18F4525 , PIC18F4550 , PIC18F4585
PIC18F4610 , PIC18F4620 , PIC18F4680
-Additional Find and edit value OSCCAL (PIC12F629/675 , PIC16F630/676)
-Additional Edit config at address 0x2008,0x2009 (PIC12F635/683 ,
PIC16F636/684/688 , PIC16F785)
Fixed Programming PIC all
Test on chip
PIC12F675 , PIC16F676 , PIC16F684 ,PIC16F767, PIC16F74
PIC16F872 , PIC16F876 , PIC16F877, PIC16F876A, PIC16F873A, PIC16F819
PIC16F84 , PIC16F84A , PIC16F628, PIC16F628A,
epromPIC12C509JW , PIC16C505JW , PIC16C711JW , PIC16CE625JW

Microchip PIC
PIC18F458 , PIC18F4320 , PIC18LF258 , PIC18F4539 , PIC18F4431

Atmel Flash Memory
AT49Fxxx (Subset 29Fxxx)
(Byte-by-Byte Programming)
(Software Data Protection)

Command seq. 5555/AA, 2AAA/55, 5555/A0
AT49F512 , AT49F010 , AT49F020 , AT49F040
SST39SF010 , SST3S9F020 ,SST39SF040
AT49F001 , AT49F002 , AT49F008A

Command seq. 555/AA, 2AA/55, 555/A0
Am29F512 , Am29F010 , Am29F020 , Am29F040 , HY29F080
29F002 , 29F002T , Pm29F002T

Atmel Flash Memory, (Sector Programming).,(Software Data Protection)

AT29C256 , AT29C512 , AT29C010A , AT29C020 , AT29C040 , AT29C040A, W29EE512 , W29EE011 , W29EE012 , W29C020(128) , W29C040, PH29EE010(W29EE011), ASD AE29F1008 (AT29C010), AE29F2008 (AT29C020), Ver 0.992 up(DOS). Can run under win9x, (disable prog. CPUIdle or CPUCool), AT49BV512


Serial Peripheral Interface (SPI), EEPROM Mode0 (0,0), AT25xxx, W95xxx
[Atmel] AT25010 , 020 , 040 (A8-A0), AT25080 , 160 , 320 , 640 , 128 , 256 (A15-A0)
[ST] W95010....256, Microchip 25x010 - 25x640
--- Byte programming
25010 , 25020 , 25040
--- Page programming
25C080 , 25C160 , 25C320 , 25C640 , 25C128 , 25C256 , 25C512
AT25HP256 , AT25HP512 , M25P10 , M25P20 , M25P40
AT25HP1024 (24bit address)
-- CAT64LCxxx (16bit DATA IN/OUT) use Socket 93Cxxx
CAT64LC010, CAT64LC020, CAT64LC040

Atmel EEPROM(page prog.)(Software Data Protection)
AT28C256 , AT28C010 , AT28C040

Nonvaltile SRAM (DS12xx)
DS1220 , DS1225Y , DS1230Y/AB , DS1245Y/AB , DS1249Y/AB

static RAM (Test RAM)
6116 , 6264 , 62256 , 62512 , 628128

EPROM winbond,SST
Electrical Erase Chip
W27E512 , W27E010 , W27C010 , W27C020 , W27C040
SST27SF256 , SST27SF512 , SST27SF010 , SST27SF020
MX26C4000
Vcc = 3.3-3.6V SST37VF512 , SST37VF010 , SST37VF020 , SST37VF040

Flash Memory SST,Sanyo
SST28SF040A , LE28F4001

ackage including :
+ A BRAND NEW Willem Eprom Programmer PCB5.0
+ A USB Cable to connect to your PC
+ A Parallel Port Cable to connect the programmer to your PC
+ A CD containing all the software

Berminat Hubungi  :
Nama  : Agus yulianto
Alamat  : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
     Plosogeneng Jombang, 61416 Jawa Timur
Telp  : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

OBD2 XPROG-M Box ECU Programmer X-PROG-M programmer V5.5 with Full Adaptor

OBD2 XPROG-M Box ECU Programmer X-PROG-M programmer V5.5 with Full Adaptor

XPROG-box v5.50 ECU Programmer


Introduction
Main Unit XPROG Mengalami pengembangan yang pesat sekali saat ini diantaranya mendukung Fungsi :
• merupakan engembangan dari XPROG proyek dan sekarang mendukung lebih dari Lebih dari 450 unit EEPROM`s
• Serial, Mikrokontroler (MCU),
• Electronics Control Unit (ECU),
• Dashboard,
• Bypass security authorization
• Allows to read/write secured and non-secured internal flash and external serial EEPROM,
• View/change mileage odometer,
• Chassis number (VIN),
• Serial number and PIN code).
• Immobilizers,
• Kalkulator
• Dll


System Requirements:
• Menimal Processor INTEL Pentium 60MHz or faster
• Memory (RAM):64MB
• Hard drive:20MB free space
• Communication:One free physical COM or USB port
• Operating system:Microsoft Windows NT/ME/2000/XP/VISTA/WIN7

Package list
• Main Unit XPROGCD dengan software XPROG-box (V5.50)
• Software
• Full set Adaptor
• Kabel USB.


AUTHORIZATIONS
Product Code Description
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 B-M-W EWS3 authorization
AUTH-0009 ATmega family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).
AUTH-0022
XPROG hardware registration

ADAPTERS
Product Code Description
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter


Berminat Hubungi  :
Nama : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
 Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Auto Automotive Sensor Simulator of Signals Tester ECU

Auto Automotive Sensor Simulator of Signals Tester ECU

Product Description
Untuk memperbaiki mobil kkhususnya mobil-mobil masa kini, yang bisa di bilang sudah basic komputernisasi ni diperlukan alat yang memadai untuk menentukan permasalahan atau kerusakan di mobil, salah satunya yaitu scanner disamping itu ada alat yang tidak kalah pentingnya yang dinamakan atau dikenal dengan nama : “Sensor Simulator of Signals “

Fungsi Sensor Simulator of Signals diataranya adalah:

Memeriksa atau Mengukur Sinyal Otomotif Sensor diantaranya :
Diagnostic semua sensor
Kabel sensor/wiring
Conector
Tegangan
Lamda
Frekuensi
Pulsa
Output aktuator
Input aktuator/sensor
Tegangan AC
Tegangan DC
Simulasi Sensor
Komponen Manajemen Komputer
Simulating sensor suhu,
throttle potentiometers,
Simulating switches,
Simulating air flow meters
Simulating lambda/oxygen sensors
Cheek Basic ECU Operation
Simulates actual working Aircondition of any sensor without having to remove it from the
Simulates actual working  vehicle A.B.S.,
Simulates actual working  Crank,
Simulates actual working  Can, Coolant, Oxygen,
Simulates actual working  MAP
Simulates actual working MAF,
Simulates actual working MAT,
Simulates actual working VSS,
Cheek Basic ECU Operation
etc.


Item specifics
Item Width : 11 cm
Item Weight : 780 g
External Testing Certification     : CE
Item Length :16 cm
Item Height : 4 cm
Model Name : 6300B
Car Maker : Universal
Special Features : Sensor Simulator
Package Size        : 28cm x 18cm x 12cm (11.02in x 7.09in x 4.72in)

Berminat Hubungi  :
Nama : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
                   Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Repair ECU ECM KESS V2 V 2.10

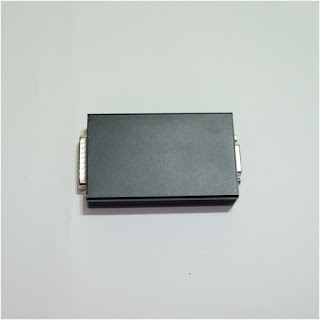

KESS V2 OBD2 Tuning Kit KESS ECU Programmer V2.23 Hardware V4.036  No Token Limitation Update by CD





KESS V2 OBD2 Tuning Kit KESS ECU Programmer V2.23 Hardware V4.036

No Token Limitation Update by CD

Top 6 Reasons To Get KESS V2

1. Firmware V4.036

2. Software Version: V2.23

3. Update by CD

4. No Token Limitation: can be used unlimitedly, no need to worry about tokens any more.

5. With Coverage of All Major Brands and Protocols including Line, CAN, EDC17 and MED17 and Ford J1850

6. Supported Languages: English, German, Spanish, Italian, Portuguese, French

KESS V2 OBD2 Manager Tuning Kit without Tokens Limitation

Kess V2 has several built in features and safeguards including:

1. Check of the battery voltage in real-time

2. Full Recovery function in case of problems

3. Automatic correction of the Checksum, (where available)

4 Boot-Loader mode supported

5. Management of the programming counters

6. ScanTool function to remove DTC

7. Several options of reading/writing speed

8. Option to write full file/section of the map

9. Full integration with ECM Titanium,which means it can work with ECM Titanium perfectly



Notice:

1.Do remember disconnect internet.(When you using this version KESS V2, please make sure your computer do not have internet. This is very important, connect to internet may damage the hardware and can not repair by your side, you must send back to us for repair.)

2.Do connect with your car when you install the software.(Otherwise software can't be installed successfully)

3. If you want to update hardware of your old KESS V2, will have to ship back the multiplexer

Update cost is 95.00USD, not including shipping cost. But not all of Kess V2 can be update via hardware. You need take picture of the QC markon the main unit, then we will confirm with factory for you. If it is available, you can pay for update cost and send it back to us for update

4. Support System: Windows XP

With coverage of all major brands and protocols including Line, CAN, EDC17 and MED17 and for Ford J1850Kess V2 is everything you need to work as a successful tuner at a very affordable price.



KESS V2 OBD2 Manager Tuning Kit without Token Limitation

Fitur  Kess V2 termasuk:

1. Check of the battery voltage in real-time

2. Full Recovery function in case of problems

3. Automatic correction of the Checksum, (where available)

4. Boot-Loader mode supported

5. Management of the programming counters

6. ScanTool function to remove DTC

7. Several options of reading/writing speed

8. Option to write full file/section of the map

9. Full integration with ECM Titanium,which means it can work with ECM Titanium perfectly

Dengan cakupan dari semua merek utama dan protokol termasuk Line, CAN, EDC17 dan MED17 dan Ford J1850. Kess V2 adalah semua yang Anda butuhkan untuk bekerja sebagai tuner dan teknisi  harga yang sangat terjangkau.

6 Alasan Utama Memilih  Kess V2 V2.23 Hardware V4.036

1. Master Versi

2. Software Versi: V2.23 Hardware V4.036



Perhatikan:

1. Jangan memperbarui alat ini secara online,

2. Jangan On line Pada waktu menggunkan

3. Mudah Tidak menggunakan  Token Batasan,

4. Kess V2 memiliki 60 Tokens, ketika Anda menggunakannya, Anda dapat menggunakan JLink Ditambah Kess V2 Chip CPU untuk Perbaikan untuk memprogram ulang dan mendapatkan selain 60 Tokens

5. Jika  v2.1.0 dianti versi lama sebaiknya seperti V2.06 penuh atau V1.89, Anda perlu menggunakan JLink Ditambah Kess V2 Chip CPU Perbaikan untuk reflash CPU Anda dan TF Card, atau dengan menggunakan komputer lain untuk menginstal perangkat lunak versi lama

Fitur  Kess V2 termasuk:

1. Check of the battery voltage in real-time
2. Full Recovery function in case of problems
3. Automatic correction of the Checksum, (where available)
4. Boot-Loader mode supported
5. Management of the programming counters
6. ScanTool function to remove DTC
7. Several options of reading/writing speed
8. Option to write full file/section of the map
9. Full integration with ECM Titanium,which means it can work with ECM Titanium perfectly



Perhatikan:
1. Jangan memperbarui alat ini secara online,
2. Jangan On line Pada waktu menggunkan
3. Mudah Tidak menggunakan  Token Batasan,
4. Kess V2 memiliki 60 Tokens, ketika Anda menggunakannya, Anda dapat menggunakan JLink Ditambah Kess V2 Chip CPU untuk Perbaikan untuk memprogram ulang dan mendapatkan selain 60 Tokens
5. Jika  v2.1.0 dianti versi lama sebaiknya seperti V2.06 penuh atau V1.89, Anda perlu menggunakan JLink Ditambah Kess V2 Chip CPU Perbaikan untuk reflash CPU Anda dan TF Card, atau dengan menggunakan komputer lain untuk menginstal perangkat lunak versi lama


Berminat Hubungi  :
Nama : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
  Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Scanner C110 obd2 Khusus untuk bmw dan Mini

Scanner C110 obd2 Khusus untuk bmw dan Mini

Rp 1.500.00

Scanner Terbaru untuk BMW dan mini diterbitkan 2014/11/20 v3.9. Update online gratis
Scanner C110  ini mendukung BMW dan Mini Cooper mulai tahun 1997-2014  (iUntuk BMW sebelum tahun 2000 diperlukan adapter  20pin).
Fungsi Baca DTC, Hapus DTC, Reset, Data Stream, Aktif Test, Pengujian Komponen, Adaptasi, Coding, Informasi Kendaraan, Data Kendaraan, dan mini Cooper , masalah kode yang jelas, menampilkan hidup aliran data, pengujian komponen, adapation.

Fungsi:
1. Baca DTC Read trouble codes
2. Hapus DTC clear trouble codes
3. Reset clear trouble codes Pending
4. Tampilan Data Stream displays live data stream
5. Test Komponen Component Testing
6. Aktif Test Test Aktuator
7. Reset dan Adaptasi Clear and adaptation
8. Coding Adaptation
9. Menampilkan Informasi Kendaraan

Dukung mobil BMW Seri atau model Supported car model:
Supports 1 Series, 3 Series, 5 Series, 6 Series, 7 series, 8 series, X series, Z series and for Mini

Scanner Ini mendukung pemeriksaan:
DME, EGS, ABS, SRS, IHKA/IHKR, IKE/IKI/KOMBI, EML, SPM/SM, EWSZKE, GR, PDC, SZM, BIT, LSZ/LCM, LEW, RAD, EHC/EDC, BM, AIC, NAV, MFL, VID, SES, MID, SHD, SMF, SPMBT, SPMFT, VTG, CID, EPS, SBSL, SBSR, CVM, SIM, SMB, URS, RDC, VMX, VNC, EKM, DWA, XEN, FHK, GSA, AHK, ADS, CAS, DME, EGS, VTC, HPFI, ACC, ARS, CIM, DSC, EDC, EHC, EMF, RDC, AHL, AHM, AMP, ASK, SZM/BZM, FBZM, CD, CD-GW, SG-FD, SG-FD- GW, FD, CDC, CON, FCON, DWA, FBI, IHKA, FKA, HKL, JBIT, KHI, KOM, LM, DVD-C, NAV , JNAV, PDC, CA, PM/MPM, RLS, SASL, SASR, SBSL, SBSR, SFZ, SSBF, SSFA, SSH, STVL , STVR, SHD, SINE, SMFA, SMBF, SMFAH, SMBFH, SHZH, SVS, SZL, SEC, TEL, TCU, TMBF T, TMBFH, TMFAT, TMFAH, VM, WIM, ZGM, SIM, KBM, SBSL, SBSR, TMFA, TMBF, CID, AL , JBE, MRS/ACSM, FRM, RLS, FZD, CCC-ANT, DDE, CCC-A, EKPS, GWS, VTG, VTC, VTC2, CCC-ASK, AL, EDCSHL, EDCSHR, EDCSVL, EDCSVR, VDM, ACSM, AMPH, AMPT, CA, CCC-BO, CCC-GW, CHAMP-BO, CHAMP-GW, CNAV, DAB, FD, FLA, FRM2, FZD, HUD, IBOC, IHKA, INS TR, JBE2, KHM, KNAV, M-ASK-BO, M-ASK-GW, RFK, RLSS, RSE, SDARS, SINE, ULF-SBX, ULF-SBX-H, VSW, EHC, ULF, IHKR, IHR, M-ASK-NAV, MRS, RAD2-BO, RAD2-GW, SDMRS, DME2, ACC2, ANT, ARS, BZM, CD, CEM, CIM2, LM2 AHL2, LM2, LM2, NVE, NVK, PM, SEC 2, SGM-SIM, SGM-ZGM, VTC2, ZBM, DSC, DSC, ALBBF, ALBFA, CIC, CIC-GW, IHKA2, KGM, SZL2, LDM, LRR, MPM, SMG, TLC, Integrate Chas Manag, Rol-mo dis, rear axle, ABS /ACS/DSC, AMP, IHKS, IHS, MJOY, AIRBAG, EWS.

Bahasa :  English./German

 Specifications

 A) Display: Color, 240 x 320 pixel display with contrast adjustment
 B) Operation Temperature: -20 °C ~ 75 °C
 C) Stroge Temperature: -40 °C ~ 120 °C
 D) Power: 8V ~ 18V
 E) Dimensions:
 Length Width Height  :  100 mm * 54 mm * 18 mm

Package includes:
1P x C110 code reader
1P x USB cable (used to upgrade the tool)
1P x User's manual
1P x handbag

Optional accessores: 20Pin obd cable for old model (1997-2000)


Berminat Hubungi  :
Nama          : Agus yulianto
Alamat  : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
                            Plosogeneng Jombang, 61416 Jawa Timur
Telp          : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Odometer program Digiprog III Digiprog3 V4.94

Odometer program Digiprog III Digiprog3 V4.94

Programmer car diagnostic tool

Description:
Digiprog III Digiprog3 V4.94 Programmer car diagnostic tool
With ST01  ST04 adapter

International Buyers – Please Note:
a)  Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
b)  Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

Description  V4.94 Digiprog 3

1. Latest Version: V4.94
2. This is newest version Digiprog3 with most competitive price.
3. With ST01 ST04 Adapter in the Package
4. Supported Languages: Deutsch, English, Espanol, French, Portuguese, Italiano, Turkish, Nederlands

V4.94 Add Model List:

Digiprog 3 V4.94 Features:

1. Service interval adjustments and settings

• Assyst processing
• Fault memory read-erase
• EEPROM programmer
• Integrated PC communication

Some Important Tips for Using Digiprog 3:

1. Always connect the Eeprom to the ST01 or ST04 before you connect to the DigiProg this will avoid Electro static feedback (ESD).
2. Never solder the connections whilst the lead is connected to the programmer, this will damage the DigiProg.
3. Always keep your DigiProg in its case when not in Use & keep it in a dry environment at night (don’t leave it in the trunk of your car) If you are using solvents to remove lacquers’ from Eeprom’s ensure that they are cleaned 4. completely as the solvent can damage the clips.

Digiprog 3 Menu:

1. EEPROM Menu
The first option on the main menu is the Eeprom menu. Reading, writing and saving Eeprom information is all done using this menu. A more detailed guide to using this menu follows later on in the introduction.

2. CAR/TRUCK Menu
This is the menu you will use for correcting and reprogramming vehicles. Manufacturers are set out in alphabetical order and models of vehicles are set out in a simple sub-menu format.

3. Motorcycle Menu
This menu is the same as the CAR/TRUCK menu but is used for reprogramming motorcycles.

4. Special Functions Menu
The special functions menu is for use only by official DigiProg dealers.

5. Setup Menu
This menu is where settings on your DigiProg can be changed. Language, password, brightness, volume, and the time/date can all be set and changed in this menu. You can also change whether your machine is working in kilometres or miles.

Using the EEPROM Menu:

On some of the vehicles you will come across, an eight pin Eeprom chip will be used to store the vehicle data. These chips hold vital information from the vehicle such as ignition and immobiliser codes. Loss of this information could result in anything from minor faults, to major faults involving the vehicle not starting and having to be taken to the main dealer. This is why it is very important to read and save the original information from the Eeprom before programming, this way if any errors do occur you can always return to the point you started. The process of reading and saving this information is very simple. The Eeprom chip itself will have a mask number printed across the top of it, for example a widely used chip is a 93C46. You can connect the chip to your DigiProg by using adaptor ST01 or ST04. Most chips are surface mount eeproms which will use ST01, but the larger DIL chips will use ST04.
Digiprog III Programmer with Full Software With the use of the new DIGIPROG III, the odometer adjustment is a breeze.


Model list:

Alfa 145 Programming via Chip
Alfa 146 Programming via Chip
Alfa 147/Chip86 Programming via Chip
Alfa 156 M2002 Programming Via Micro
Alfa 156HC11 Programming via Chip
Alfa 164 Only in our Office
Alfa 166 Model 2002 Programming Via Micro
Alfa 166HC11 Programming Via Micro
Alfa 166M 2002 Programming via Chip
Alfa Spider / GTV Only in our Office
Aston Martin DB7 Programming Via Micro
Aston Martin DB9 Program via cluster
Aston Martin Gallardo Programming Via Chip
Aston Martin Vanquish Programming Via Micro
Aston Martin Zagato Programming Via Micro
Audi A2/3/4/6 VDO 07/01 Diagnostic
Audi A2/3/4/6 VDO 07/01- Diagnostic
Audi A3 A8 2003 on Service & Navigation Diagnostic
Audi A3 to 06/01 Diagnosis
Audi A3 UKNSI Programmind Via Chip
Audi A4 Bosch 2002 Diagnostic
Audi A4 Modell 2001 Bosch Diagnostic
Audi A4 UKNSI Programmind Via Chip
Audi A8 / S8 up 02/99 Programming via Chip
Audi A8 24C16 Chip Programming via Chip
Audi A8 to 01/99 Diagnosis
Audi A8 VDO 2002 Programming via chip
Audi Audi A3/ A6/ A8 2006 on Diagnostic
Audi Jaeger/Magneti Marelli up 04/99 Diagnosis
Audi Magnetti Marelli All models Diagnostic
Audi MM 4/99 Diagnosis
Audi MM4/99 HC12 Programming Via Micro
Audi TT Diagnosis
Bentley Continental GT 2003 / Diagnostic
Bentley Continetal Program Via Chip
BMW 3 Series E46 2000 35080 Chip Programming Via chip
BMW 3 Series E46 Bosch 35080 Programming via chip
BMW 3er / Compact / Z3 Cluster-Diagnosis
BMW 3er / Compact / Z3 up 98 Cluster-Diagnosis
BMW 3er / E36 Diagnosis
BMW 3er / E36 Modell 99 Cluster-Diagnosis
BMW 3er / E46 1999/2000 Diagnostic
BMW 3er / E46 Lightmodule HC11 Programming via Chip
BMW 5er / E34 Programming via Chip
BMW 5er / E39 up 05/99 Programming via Chip
BMW 5er / E39 with BC to 04/99 Diagnosis
BMW 5er / E39 without BC to 04/99 Diagnosis
BMW 7er / E32 Programming via Chip
BMW 7er / E38 (SW 12/13) up 05/99 Cluster-Diagnosis
BMW 7er / E38 (SW 14) up 05/99 Programming via Chip
BMW 7er / E38 to 04/99 Diagnosis
BMW 7er up 10/01 Only in our Office / In progress
BMW 8er / E31 Diagnosis
BMW All CAS Units Send to office
BMW E39 LCM Diagnostic
BMW E39 Light Module All models Diagnostic
BMW E46 2001/ Light Module HC12 Diagnostic
BMW E46 2003/ Light Module HC12S Diagnostic
BMW E46 LCM Diagnostic
BMW E50 5 Series 2004 Diagnostic
BMW E60 & E65 E90 2004 2007 CAS Diagnostic
BMW F650GS Programming Via Chip
BMW Key Module & LCM all models Progarmming Via EWS
BMW Still R70 Programming Via Chip
BMW X3 Programming Via Chip & EWS LCM Diag
BMW X3 LCM Diagnostic
BMW X5 (SW 14 High) Programming via Chip
BMW X5 EWS & Key Programming Via EWS
BMW X5 LCM Diagnostic
BMW X5 Light module Diagnostic
BMW X5 Light module HS12 Diagnostic
BMW Z4 Programming Via Chip
BMW Z8 Programming via Chip
Cagiva Raptor 1000 Programming Via Chip
Chevrolet Avalanche Programming Via Micro
Chevrolet Balzer Programming Via chip
Chevrolet Corvette Programing Via Chip
Chevrolet Corvette Programming Via chip
ChevroletTahoe Programming Via chip
ChevroletTrail Blazer 95020 Programming Via chip
Chrysler 300 HC12 Programming Via Micro
Chrysler 300M Programming via Chip
Chrysler All Models Diagnostic
Chrysler Cherokee Modell 2002 Diagnostic
Chrysler Cherokee to Chip 56 Programming via Chip
Chrysler Crossfire Diagnostic
Chrysler Grand Cherokee 04/99 Diagnostic
Chrysler Grand Cherokee C86 Program via chip
Chrysler Grand Cherokee HC12 Diagnostic
Chrysler Grand Cherokee to 03/99 Diagnosis
Chrysler Le Baron Only in our Office / In progress
Chrysler Neon HC12 Programming via Chip
Chrysler PT Cruiser HC12 Diagnostic
Chrysler PT Cruiser to HC11 Diagnoctic
Chrysler Seebring HC12 Programming via Cluster
Chrysler Stratus Diagnosis
Chrysler Voyager Modell 2002 HC12 Cluster-Diagnosis
Chrysler Voyager to Bj. 2001 Diagnosis
Chrysler Wrangler Programming via Chip
Chrysler Wrangler HC11 Programming via Micro
Citreon C3 Programming Via Tacho & Box
Citreon C5 Programming Via Box & Cluster
Citreon C5 2003 Programming Via chips
Citreon C8 Programming Via Tacho & BSI
Citreon New Saxo Diagnostic
Citreon Picasso NEC Tacho & Box Via Micro & Chip
Citreon Relay Van Chip 95040 Programming Via Chip
Citreon Xsara 2000/2002 NEC Programming Via Chips BSI & Tacho
Citroen Belingo 2003/2004 Programming Via cluster & BSI
Citroen Belingo HC08 Tacho Programming Via Micro
Citroen C3 Programming Via Chip
Citroen C5 New software Programming Via Cluster & BCM
Citroen C8 Programming Via Tacho & BSI
Citroen Evasion Programming via Chip
Citroen Relay Programming Via Chip
Citroen Xantia Programming via Chip
Citroen Xsara Programming via Chip
Citroen Xsara Programming Via BCU & Tacho
Daimler Benz 300C Programming Via Micro
Daimler Benz A-Klasse Diagnosis
Daimler Benz C/Klasse (W203) 07/2003 Diagnostic Via cluster
Daimler Benz C/Klasse (W203) 2001/2002 Diagnostic Via cluster
Daimler Benz C-Klasse (W202) Diagnosis
Daimler Benz C-Klasse (W203) 07/003 Diagnosis
Daimler Benz CLK / SLK to 03/99 Diagnosis
Daimler Benz CLK / SLK up 04/99 Diagnosis
Daimler Benz E-Klasse to 03/99 Diagnosis
Daimler Benz E-Klasse up 04/99 Diagnosis
Daimler Benz G Klasse Programmingg Via Box
Daimler Benz G-Klasse to 03/99 Diagnosis
Daimler Benz G-Klasse up 04/99 to 07/01 Diagnosis
Daimler Benz G-Klasse up 08/01 Diagnosis
Daimler Benz M-Klasse to 03/99 Diagnosis
Daimler Benz M-Klasse up 04/99 to 07/01 Diagnosis
Daimler Benz M-Klasse up 08/01 Diagnosis
Daimler Benz S-Klasse Diagnosis
Daimler Benz S-Klasse (W220 ) up 06/02 Programming via Chip & Key
Daimler Benz S-Klasse (W220) to 05/01 Programming via Chip
Daimler Benz SL 2002 Programming Via Key & chip
Daimler Benz SL-Klasse R129 Diagnosis
Daimler Benz SL-Klasse R130 Programming via Chip
Daimler Benz Smart 2004 Programming Via Tacho & BSI
Daimler Benz Sprinter Cluster-Diagnosis
Daimler Benz Sprinter Modell 2000 Programming via Chip
Daimler Benz Vaneo Programming Via Cluster
Daimler Benz Vito Vaneo Model 2003 on Programming Via Tacho & Key module
Daimler Benz Vito VDO Cluster-Diagnosis
Daimler Benz V-Klasse / Magneti Marelli Diagnosis
Daimler Benz V-Klasse VDO Cluster-Diagnosis
Daimler Benz W203 W211 Key module HC12S Only in our office
Daimler Benz W209 CLK / SLK up tp 08/03 Diagnostic
Daimler Benz W211 2004 Key & Gateway Only in our office
Daimler Benz W211 2004 Service Assyst Only in our office
Daimler Benz W211 E Class SW 77 Diagnostic
Daimler Benz W211 E Class up to Sept 2003 Diagnostic
Dodge Durango Programming via Chip
Dodge Ram 2003 Diagnostic
F-errari 430 Program via chip
F-errari 550M Programming Via Chip
F-errari ENZO Scagletti Programming via chip
F-errari F50 Only in our Office / In progress
F-errari F50 Programming Via Chip
F-errari F650 Programming Via Chip
F-errari Modena 360 Programming Via Chip
F-errari Stradale Programming Via Chip
Fiat Brava ST Cluster-Diagnosis
Fiat Bravo MM08 Programming Via Micro
Fiat Bravo NS56 Programming Via Micro
Fiat Daily VDO Chip Programming Via Chip
Fiat Ducato M2002 NEC Programming Via Chip
Fiat Duplo Model 2002 Programming via Chip
Fiat Iveco Daily Programming via Chip
Fiat Marea 2004 Programming via Micro
Fiat Marea 2004 Programming Via Chip
Fiat Marea HC11 Programming Via Micro
Fiat Multipla Cluster-Diagnosis
Fiat Multipla M2002 C56 Programming Via Chip
Fiat Panda Programming Via Chip
Fiat Panda Programming Via Chip
Fiat Panda Chip 95040 Program via chip
Fiat Punto 2002 NEC Programming via Chip
Fiat Punto Jeager 08 Cluster-Diagnosis
Fiat Scudo Programming via Chip
Fiat Seicento Programming Via Chip
Fiat Stilo Programming Via Chip
Fiat Stilo Programming Via Micro
Fiat Ulysee 2004 Programming Via Tacho & BSI
Fiat Ulysse Programmin Via Micro
Ford Connect Programming Via Micro
Ford Connect Programming Via Chip
Ford Cougar Cluster-Diagnosis
Ford Explorer Programming Via Micro
Ford Explorer 2003 Programming Via Micro
Ford F150 2004 Programming Via Micro
Ford F150 HC11 Programming Via Micro
Ford F250 HC12 Programming Via Micro
Ford F350 Program Via Cluster
Ford Feista 2003 Programming Via Chip
Ford Feista 9S12 2006 model Programming Via BDM
Ford Fiesta Cluster-Diagnosis
Ford Focus Cluster-Diagnosis
Ford Focus 2003 Chp & Micro all models Programmin Via chip Or BDM Points
Ford Fusion Programming Via Chip
Ford Fusion Progarmming Via Chip
Ford Galaxy Diagnosis
Ford Galaxy 2000/2006 Diagnosis
Ford Maverick HC11 Programming Via Micro
Ford Mondeo Cluster-Diagnosis
Ford Mustang Programming Via Micro
Ford Puma Cluster-Diagnosis
Ford Ranger Programming Via Cluster
Ford Scorpio Cluster-Diagnosis
Ford Tarus 2003/ Only in our office
Ford Thunderbird 2005/ 2006 model Programming Via BDM
Ford Transit 2003 Programming Via chip
Ford Transit 2004 Programming Via Micro
Ford Transit Model 2003 Programming Via Chip
Ford Transit TVI Chip 66 Progarmming Via Chip
Ford VAN F150 Programming via Chip
Ford Windstar HC11 Programming Via Micro
GM Cadillac Programming Via Chip
GM Cadillac Seville STS Chip Programming via Chip
GM Cadillac Seville STS HC 11 Cluster-Diagnosis
GM Corvette Chip 93C76 Programming via chip
GM Hummer Programming via Chip
GM Hummer 2006 Programming via Tacho & Box
GM Hummer Klms & Hours Programming Via Chip
GM Seville HC11 Programming Via Micro
GM Trans Sport HC12 Programming Via Micro
GM Transport M99 Programming Via Micro
Buel Programming via Chip
Honda Accord Programming via Chip
Honda Accord Type R Programming Via Chip
Honda CBR 1000RR Programming Via Chip
Honda CBR400 Programming Via Chip
Honda Civic Programming via Chip
Honda CRV 2004 Chip 56 Programming Via Chip
Honda CRV Chip 93C56 Programming Via Chip
Honda CRV HC12 Programming Via PCB
Honda HRV Programming via Chip
Honda Jazz Programming Via Chip
Honda Jazz Programming Via chip
Honda Legend Programming via Chip
Honda Logo programming Via Chip
Honda S 2000 Programming via Chip
Honda Shutle Programming via Chip
Honda Stream Programming Via chip
Honda VFR 800 93C46 Programming Via Chip
Hummer Miles & Hours Programming Via chip
Hyundai Coupe Ch 46 Programming Via Chip
Hyundai Getz Programming Via Chip
Hyundai Matrix Ch 46 Programming Via Chip
Hyundai Sante Fe Ch56 Programming Via Chip
Hyundai XG 30 Ch 46 Programming Via Chip
Hyundia Accent Programming Via Chip
Isuzu Trooper Programming via Chip
Jaguar Daimler to 12/97 Cluster-Diagnosis
Jaguar Daimler up 01/98 Cluster-Diagnosis
Jaguar S Type 2005 Program Via Cluster
Jaguar S Type HC12 Programming Via PCB
Jaguar S-Type 2002 HC12 Programming via Micro
Jaguar S-Type to 09/01 Programming via Micro
Jaguar S-Type up 10/01 Programming via Micro
Jaguar XJ 350 Programming Via Micro
Jaguar XK8 Programming via Micro
Jaguar Xtype HC12 Programming Via PCB
Kawasaki GPZ 600 93C46 Programming via Chip
Kawasaki ZX9 93C46 Programming via Chip
Kia Carnival Programming Via Chip
Kia Sorrento Programming Via Chip
Kia Sorrento Programming Via Chip
Lamborghini Gallardo Programming Via Chip
Lancia Lybra Programming via Chip
Lancia Z Programming via Chip
LDV Convoy Van Programming Via Chip
Lexus LS 200 Programming via Chip
Lexus LS 300 Programming via Chip
Lexus LS 400 Programming via Chip
Lexus LS 430 Programming via Chip
Lexus RX300 Programming via Chip
Lincoln Navigator Programming via Chip
Lincoln Navigator 2003 Programming Via Micro
Lotus Elise HC11 Programming Via Micro
Maserati Quattroporte Programming Via chip
Mazda 3 Programming Via Chip
Mazda 323 Programming via Chip
Mazda 6 Programming Via Chip
Mazda 6 Programming Via Chip
Mazda 626 Programming via Chip
Mazda 626 2003 Programming via Chip
Mazda MPV Programming via Chip
Mazda MX5 Programming via Chip
Mazda Premecy Programming via Chip
Mazda RX7 Programming via Chip
Mazda RX8 Programming Via Tacho
Mazda TRIBUTE HC11 Programming Via Micro
Mitsubishi Carisma Programming via Chip
Mitsubishi Colt Programming via Chip
Mitsubishi Eclipse Programming Via Chip
Mitsubishi Galant Programming via Chip
Mitsubishi Grandis Programming Via Chip
Mitsubishi Lancer Programming via Chip
Mitsubishi Outlander Programming via Chip
Mitsubishi Pajero Programming via Chip
Mitsubishi PININ Ch 46 Programming via Chip
Mitsubishi Shogun Ch 56 Programming via Chip
Mitsubishi Space Gear Programming via Chip
Mitsubishi Space Runner Programming via Chip
Mitsubishi Space Star Programming via Chip
Mitsubishi Space Wagon Programming via Chip
Motor Cycles
Nissan Almera 93C46/C56/C66 Programming via Chip
Nissan Infinity Programming via Chip
Nissan Maxima Programming via Chip
Nissan Micra Programming via Chip
Nissan Navaro Programming via Chip
Nissan Pathfinder Programming via Chip
Nissan Pathfinder HC12S Program Via Cluster
Nissan Patrol Programming via Chip
Nissan Pick Up Programming via Chip
Nissan Primera Programming via Chip
Nissan Primera 2004 Programming Via Chip
Nissan Primera 93C56/ C66 Programming Via Chip
Nissan Skyline R34 Programming Via Chip
Nissan Skyline R35 & GT350 Programming Via Chip
Nissan Skyline R35 350GT Programming Via Chip
Nissan Terrano II Cluster-Diagnosis
Nissan Tino Programming Via Chip
Nissan Xtrail Programming Via Chip
Nissan Xtrail C66 Programming Via Chip
Opel Astra Diagnosis
Opel Corsa Diagnosis.
Opel Frontera Programming via Chip
Opel Montery Programming via Chip
Opel Movano Programming Via Chip
Opel Vectra 04/99 Diagnosis
Opel Vectra 2003/2007 Programming Via chip
Opel Vectra to 03/99 Diagnosis
Opel Vivaro M2002 NEC Programming via Chip
Opel Zafira Diagnosis
Opel Zafira 2003./2007 Diagnostic
Peugeot 106 Diagnostic
Peugeot 206 Jaeger Programming Via Micro
Peugeot 206 M2002 NEC All new models Programming Via Chip
Peugeot 306 VDO Cluster-Diagnosis
Peugeot 307 Chip Programming Via Box & Tacho
Peugeot 307 HC12 Programming Via Micros
Peugeot 406 Jaeger Programming Via Micro
Peugeot 406 Sagem Programming via Chip
Peugeot 406 Valeo Box Programming Via Box & Cluster
Peugeot 406 VDO Cluster-Diagnosis
Peugeot 406 VDO 2000/2001 Cluster + BCU
Peugeot 407 Programming Via Tacho & BSI
Peugeot 607 VDO Programmingg Via Box + Cluster
Peugeot 806 Jaeger / Magneti Marelli Programming Via Micro
Peugeot 807 Programming Via Tacho & BSI
Peugeot BOXER Programming Via Chip
Peugeot Partner Programming Via Chip
Porsche 928 Programming via Chip
Porsche 996 09/01/2000 Diagnostic
Porsche 996 2000/2002 BCU Programming Via Box
Porsche 996 to 08/01 Diagnosis
Porsche 996 Turbo Ready Soon
Porsche 996 up 09/01 93C86 Diagnostic
Porsche 997 MCU Program via chip
Porsche 997 Tacho & MCU Programming Via Chips
Porsche Boxster Diagnosis
Porsche Cayenne Diagnostic
Porsche Cheyenne Programming Via Chip
Renault Clio 2004 Programming Via Chip
Renault Clio Jaeger / Magneti Marelli Programming Via Micro
Renault Clio M2002 NEC Programming via Chip
Renault Clio Sagem Programming via Chip
Renault Espace Model 2004 Programming Via Tacho & BSI
Renault Espace to 01/99 Only in our Office / In progress
Renault Espace up 02/99 Programming Via Micro
Renault Espace up 2003 Ch 56 Programming via Chip
Renault Kangoo Programming via Chip
Renault Laguna HC12 Programming Via Micro
Renault Laguna Jaeger Programming via Chip
Renault Laguna MM08 Programming Via Micro
Renault Laguna Sagem Programming via Chip
Renault Laguna ST Micro Programming Via Micro
Renault Master Programming Via Chip
Renault Megane Jaeger / Magneti Marelli Programming Via Micro
Renault Megane Sagem to 09/99 Programming via Chip
Renault Megane Sagem up 10/99 Only in our Office / In progress
Renault Megane Senic Sagem Only in our Office / In progress
Renault R25 Programming via Chip
Renault Safrane Programming via Chip
Renault Traffic Programming Via Micro
Renault Twingo Programming Via Micro
Rolls Royce All Models Only in our Office
Rover 25/45 Programming Via Chip
Rover 75 Programming via Chip
Rover 75 LCM Diagnostic
Rover 75 Light Module Diagnostic
Rover Defender Programming via Chip
Rover Discovery TD5 Programming Via BCU
Rover Freelander to 05/01 Programming via Chip
Rover Freelander to 06/02 Only in our Office / In progress
Rover Landrover Programming via Chip
Rover MGF Programming via Chip
Rover MGTF 2003/2004 Programming Via Micro
Rover Mini Cooper 2 Models up to Sept 2003 Programming Via Cluster & Box
Rover Range Rover Programming via Chip
Rover Range Rover 2001/2002 Programming via chip
Saab 900 Not Implemented
Saab 9-3 Programming via Chip
Saab 93 24C02 Programming Via chip
Saab 93 9S12 Programming Via BDM
Saab 93 Model 2003 All models Programming Via Chip
Saab 9-5 Programming via Chip
Sang Yong Rexton Programming Via Chip
Seat All Diagnosis
Seat Altea Diagnostic
Seat Leon Diagnostic
Seat Toledo Diagnostic
Skoda Fabia 2002 Diagnostic
Skoda Octavia Service inspection & Klms Diagnostic
Smart Four four Cluster & BSI Programming Via Chip & Micro
Smart Smart All models Tacho & BSI Programming Via Box & Cluster
Subaru Forester Programming via Chip
Subaru Impreza Programming via Chip
Subaru Legacy Programming via Chip
Subaru Tribeca Programming via chip
Susuki Liana Programming Via Chip
Suzuki Ignis Programming Via Chip
Suzuki Ignis Programming Via Chip
Suzuki Jimny Programming via Chip
Suzuki Liana 2005 Program via chip
Suzuki TL 1000S Programming via Chip
Suzuki Vitara Programming via Chip
Toyota Avensis Diagnosis
Toyota Avensis 2004 Programming Via chip
Toyota Camry Programming via Chip
Toyota Cellica Programming via Chip
Toyota Corolla Programming via Chip
Toyota Corrolla VDO Programming via chip
Toyota Hi Ace Programming via Chip
Toyota HJ 100 Programming Via Chip
Toyota IGNIS Programming Via Chip
Toyota K95 Programming via Chip
Toyota Land Cruiser 2003 C66 Programming Via Chip
Toyota Landcruiser Programming via Chip
Toyota Landcruiser 2003 Ch66 Programming via Chip
Toyota MR 2 Programming via Chip
Toyota Picnic Programming via Chip
Toyota Prado Programming via chip
Toyota Previa Programming via Chip
Toyota Prious Programming Via Chip
Toyota RAV4 Programming via Chip
Toyota Yaris Programming via Chip
Toyota Yaris Tsport Programming via Chip
Vauxhall Astra 2004 Programming Via Chip
Vauxhall Astra 2004 Programming Via Chip
Vauxhall Meriva Diagnostic
Vauxhall Movano Programming Via Chip
Vauxhall Speedster Programming Via Chip
Vauxhall Vectra 2004 Programming Via Chip
Volvo S40 / V40 Programming via Chip
Volvo S60 / V60 Programming via Chip
Volvo S80 up 02/99 Cluster-Diagnosis
Volvo V40 Model 2003 on Programming Via Chip
Volvo V50 Programming Via Micro
Volvo V60/V70/V80. Model 2002 Programming Via Micro
Volvo V70 2002 HC12 Cluster-Diagnosis
Volvo V70 to 01/99 Programming via Chip
Volvo V70 up 02/00 Cluster-Diagnosis
Volvo V70 up 02/99 to 01/00 Cluster-Diagnosis
Volvo V70 V2 HC12 Cluster-Diagnosis
Volvo XC 70 2003/2004 Programming Via Micro
Volvo XC 90 2003/2004 Programming Via Micro
Volvo XC70 2004 Model Programming Via Micro
Volvo XC90 2004 Model Programming Via Micro
VW Bora Diagnosis
VW Caddy Cluster-Diagnosis
VW Caddy 2005 Diagnostic
VW Corrado Cluster-Diagnosis
VW Crafter Programming Via Chip
VW Golf 3 Cluster-Diagnosis
VW Golf 4 Diagnosis
VW Golf 4 24C08 Chip Programming Via Chip
VW Golf 4 All models Diagnostic
VW Golf Mk 5 up to August 2006 Diagnostic
VW Golf Visteon Diagnostic
VW Golf5 Up to August 2006 Diagnostic
VW LT Cluster-Diagnosis
VW Lupo Diagnosis
VW New Beetle Diagnosis
VW New Sharan Diagnosis
VW Passat B3 Cluster-Diagnosis
VW Passat B5 Diagnosis
VW Passat B6 up 12/00 Diagnosis
VW Pheaton Bosch Diagnostc
VW Polo Diagnosis
VW Polo 2003 Diagnostic
VW Sharan Diagnosis
VW Sharan 2006 model Diagnostic
VW T4 Bus Cluster-Diagnosis
VW Taro Cluster-Diagnosis
VW Touareg Diagnostic
VW Touran Service Inspection Diagnostic
VW Vento Cluster-Diagnosis
Wiesmann Roadster Programming via chip
Yamaha R6 Programming Via Chip
Yamaha R6 Programming via Chip
Yamaha VTR 1000 93C46 Programming via Chip
Yamaha Wild Star 93C46 Programming via Chip
Yamaha YZF-R1 93C46 Programming via Chip

Package including:

One unit of Main interface
One unit of OBD2 cable
Many unit of adaptors and cables


Berminat Hubungi  :
Nama : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
  Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Digiprog III Digiprog3 V4.94 Programmer car diagnostic tool

Power : w

Brand Name : digipro 3

Model Name : digipro 3

Item Width : 25 cm

Car Maker : Brilliance,Chevrolet,Chevy,Chrysler,Citroen,Dacia,Dadi,Daewoo,

Daihatsu,Demo,Fiat,Ford,GM,Holden,Honda,Hyundai,Isuzu,Jaguar,Kia,Lancia,Land Rover,Mahindra,Maruti,Mazda,Mitsubish,Nissan,Opel,Peugeot,Porsche,Renault,Romeo,Rover,Saab,Skoda,Smart,Subaru,Toyota,Volvo,VW,Yamaha

Material Type        : plastic

Item Height   : 20 cm

Voltage        : v

Language : English,Spanish,French,Italian,Russian,

  German,Denish,Polish,Portuguese

Item Weight : 4 kg

Version        : v4.94

Model Name : Digiprog iii

Description:

Digiprog III Digiprog3 V4.94 Programmer car diagnostic tool

With ST01  ST04 adapter

International Buyers – Please Note:

a)  Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.

b)  Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

Description  V4.94 Digiprog 3

1. Latest Version: V4.94

2. This is newest version Digiprog3 with most competitive price.

3. With ST01 ST04 Adapter in the Package

4. Supported Languages: Deutsch, English, Espanol, French, Portuguese, Italiano, Turkish, Nederlands

V4.94 Add Model List:

Digiprog 3 V4.94 Features:

1. Service interval adjustments and settings

• Assyst processing

• Fault memory read-erase

• EEPROM programmer

• Integrated PC communication

Some Important Tips for Using Digiprog 3:

1. Always connect the Eeprom to the ST01 or ST04 before you connect to the DigiProg this will avoid Electro static feedback (ESD).

2. Never solder the connections whilst the lead is connected to the programmer, this will damage the DigiProg.

3. Always keep your DigiProg in its case when not in Use & keep it in a dry environment at night (don’t leave it in the trunk of your car) If you are using solvents to remove lacquers’ from Eeprom’s ensure that they are cleaned 4. completely as the solvent can damage the clips.

Digiprog 3 Menu:

1. EEPROM Menu

The first option on the main menu is the Eeprom menu. Reading, writing and saving Eeprom information is all done using this menu. A more detailed guide to using this menu follows later on in the introduction.

2. CAR/TRUCK Menu

This is the menu you will use for correcting and reprogramming vehicles. Manufacturers are set out in alphabetical order and models of vehicles are set out in a simple sub-menu format.

3. Motorcycle Menu

This menu is the same as the CAR/TRUCK menu but is used for reprogramming motorcycles.

4. Special Functions Menu

The special functions menu is for use only by official DigiProg dealers.

5. Setup Menu

This menu is where settings on your DigiProg can be changed. Language, password, brightness, volume, and the time/date can all be set and changed in this menu. You can also change whether your machine is working in kilometres or miles.

Using the EEPROM Menu:

On some of the vehicles you will come across, an eight pin Eeprom chip will be used to store the vehicle data. These chips hold vital information from the vehicle such as ignition and immobiliser codes. Loss of this information could result in anything from minor faults, to major faults involving the vehicle not starting and having to be taken to the main dealer. This is why it is very important to read and save the original information from the Eeprom before programming, this way if any errors do occur you can always return to the point you started. The process of reading and saving this information is very simple. The Eeprom chip itself will have a mask number printed across the top of it, for example a widely used chip is a 93C46. You can connect the chip to your DigiProg by using adaptor ST01 or ST04. Most chips are surface mount eeproms which will use ST01, but the larger DIL chips will use ST04.

Digiprog III Programmer with Full Software With the use of the new DIGIPROG III, the odometer adjustment is a breeze.

Model list:

Alfa 145 Programming via Chip

Alfa 146 Programming via Chip

Alfa 147/Chip86 Programming via Chip

Alfa 156 M2002 Programming Via Micro

Alfa 156HC11 Programming via Chip

Alfa 164 Only in our Office

Alfa 166 Model 2002 Programming Via Micro

Alfa 166HC11 Programming Via Micro

Alfa 166M 2002 Programming via Chip

Alfa Spider / GTV Only in our Office

Aston Martin DB7 Programming Via Micro

Aston Martin DB9 Program via cluster

Aston Martin Gallardo Programming Via Chip

Aston Martin Vanquish Programming Via Micro

Aston Martin Zagato Programming Via Micro

Audi A2/3/4/6 VDO 07/01 Diagnostic

Audi A2/3/4/6 VDO 07/01- Diagnostic

Audi A3 A8 2003 on Service & Navigation Diagnostic

Audi A3 to 06/01 Diagnosis

Audi A3 UKNSI Programmind Via Chip

Audi A4 Bosch 2002 Diagnostic

Audi A4 Modell 2001 Bosch Diagnostic

Audi A4 UKNSI Programmind Via Chip

Audi A8 / S8 up 02/99 Programming via Chip

Audi A8 24C16 Chip Programming via Chip

Audi A8 to 01/99 Diagnosis

Audi A8 VDO 2002 Programming via chip

Audi Audi A3/ A6/ A8 2006 on Diagnostic

Audi Jaeger/Magneti Marelli up 04/99 Diagnosis

Audi Magnetti Marelli All models Diagnostic

Audi MM 4/99 Diagnosis

Audi MM4/99 HC12 Programming Via Micro

Audi TT Diagnosis

Bentley Continental GT 2003 / Diagnostic

Bentley Continetal Program Via Chip

BMW 3 Series E46 2000 35080 Chip Programming Via chip

BMW 3 Series E46 Bosch 35080 Programming via chip

BMW 3er / Compact / Z3 Cluster-Diagnosis

BMW 3er / Compact / Z3 up 98 Cluster-Diagnosis

BMW 3er / E36 Diagnosis

BMW 3er / E36 Modell 99 Cluster-Diagnosis

BMW 3er / E46 1999/2000 Diagnostic

BMW 3er / E46 Lightmodule HC11 Programming via Chip

BMW 5er / E34 Programming via Chip

BMW 5er / E39 up 05/99 Programming via Chip

BMW 5er / E39 with BC to 04/99 Diagnosis

BMW 5er / E39 without BC to 04/99 Diagnosis

BMW 7er / E32 Programming via Chip

BMW 7er / E38 (SW 12/13) up 05/99 Cluster-Diagnosis

BMW 7er / E38 (SW 14) up 05/99 Programming via Chip

BMW 7er / E38 to 04/99 Diagnosis

BMW 7er up 10/01 Only in our Office / In progress

BMW 8er / E31 Diagnosis

BMW All CAS Units Send to office

BMW E39 LCM Diagnostic

BMW E39 Light Module All models Diagnostic

BMW E46 2001/ Light Module HC12 Diagnostic

BMW E46 2003/ Light Module HC12S Diagnostic

BMW E46 LCM Diagnostic

BMW E50 5 Series 2004 Diagnostic

BMW E60 & E65 E90 2004 2007 CAS Diagnostic

BMW F650GS Programming Via Chip

BMW Key Module & LCM all models Progarmming Via EWS

BMW Still R70 Programming Via Chip

BMW X3 Programming Via Chip & EWS LCM Diag

BMW X3 LCM Diagnostic

BMW X5 (SW 14 High) Programming via Chip

BMW X5 EWS & Key Programming Via EWS

BMW X5 LCM Diagnostic

BMW X5 Light module Diagnostic

BMW X5 Light module HS12 Diagnostic

BMW Z4 Programming Via Chip

BMW Z8 Programming via Chip

Cagiva Raptor 1000 Programming Via Chip

Chevrolet Avalanche Programming Via Micro

Chevrolet Balzer Programming Via chip

Chevrolet Corvette Programing Via Chip

Chevrolet Corvette Programming Via chip

ChevroletTahoe Programming Via chip

ChevroletTrail Blazer 95020 Programming Via chip

Chrysler 300 HC12 Programming Via Micro

Chrysler 300M Programming via Chip

Chrysler All Models Diagnostic

Chrysler Cherokee Modell 2002 Diagnostic

Chrysler Cherokee to Chip 56 Programming via Chip

Chrysler Crossfire Diagnostic

Chrysler Grand Cherokee 04/99 Diagnostic

Chrysler Grand Cherokee C86 Program via chip

Chrysler Grand Cherokee HC12 Diagnostic

Chrysler Grand Cherokee to 03/99 Diagnosis

Chrysler Le Baron Only in our Office / In progress

Chrysler Neon HC12 Programming via Chip

Chrysler PT Cruiser HC12 Diagnostic

Chrysler PT Cruiser to HC11 Diagnoctic

Chrysler Seebring HC12 Programming via Cluster

Chrysler Stratus Diagnosis

Chrysler Voyager Modell 2002 HC12 Cluster-Diagnosis

Chrysler Voyager to Bj. 2001 Diagnosis

Chrysler Wrangler Programming via Chip

Chrysler Wrangler HC11 Programming via Micro

Citreon C3 Programming Via Tacho & Box

Citreon C5 Programming Via Box & Cluster

Citreon C5 2003 Programming Via chips

Citreon C8 Programming Via Tacho & BSI

Citreon New Saxo Diagnostic

Citreon Picasso NEC Tacho & Box Via Micro & Chip

Citreon Relay Van Chip 95040 Programming Via Chip

Citreon Xsara 2000/2002 NEC Programming Via Chips BSI & Tacho

Citroen Belingo 2003/2004 Programming Via cluster & BSI

Citroen Belingo HC08 Tacho Programming Via Micro

Citroen C3 Programming Via Chip

Citroen C5 New software Programming Via Cluster & BCM

Citroen C8 Programming Via Tacho & BSI

Citroen Evasion Programming via Chip

Citroen Relay Programming Via Chip

Citroen Xantia Programming via Chip

Citroen Xsara Programming via Chip

Citroen Xsara Programming Via BCU & Tacho

Daimler Benz 300C Programming Via Micro

Daimler Benz A-Klasse Diagnosis

Daimler Benz C/Klasse (W203) 07/2003 Diagnostic Via cluster

Daimler Benz C/Klasse (W203) 2001/2002 Diagnostic Via cluster

Daimler Benz C-Klasse (W202) Diagnosis

Daimler Benz C-Klasse (W203) 07/003 Diagnosis

Daimler Benz CLK / SLK to 03/99 Diagnosis

Daimler Benz CLK / SLK up 04/99 Diagnosis

Daimler Benz E-Klasse to 03/99 Diagnosis

Daimler Benz E-Klasse up 04/99 Diagnosis

Daimler Benz G Klasse Programmingg Via Box

Daimler Benz G-Klasse to 03/99 Diagnosis

Daimler Benz G-Klasse up 04/99 to 07/01 Diagnosis

Daimler Benz G-Klasse up 08/01 Diagnosis

Daimler Benz M-Klasse to 03/99 Diagnosis

Daimler Benz M-Klasse up 04/99 to 07/01 Diagnosis

Daimler Benz M-Klasse up 08/01 Diagnosis

Daimler Benz S-Klasse Diagnosis

Daimler Benz S-Klasse (W220 ) up 06/02 Programming via Chip & Key

Daimler Benz S-Klasse (W220) to 05/01 Programming via Chip

Daimler Benz SL 2002 Programming Via Key & chip

Daimler Benz SL-Klasse R129 Diagnosis

Daimler Benz SL-Klasse R130 Programming via Chip

Daimler Benz Smart 2004 Programming Via Tacho & BSI

Daimler Benz Sprinter Cluster-Diagnosis

Daimler Benz Sprinter Modell 2000 Programming via Chip

Daimler Benz Vaneo Programming Via Cluster

Daimler Benz Vito Vaneo Model 2003 on Programming Via Tacho & Key module

Daimler Benz Vito VDO Cluster-Diagnosis

Daimler Benz V-Klasse / Magneti Marelli Diagnosis

Daimler Benz V-Klasse VDO Cluster-Diagnosis

Daimler Benz W203 W211 Key module HC12S Only in our office

Daimler Benz W209 CLK / SLK up tp 08/03 Diagnostic

Daimler Benz W211 2004 Key & Gateway Only in our office

Daimler Benz W211 2004 Service Assyst Only in our office

Daimler Benz W211 E Class SW 77 Diagnostic

Daimler Benz W211 E Class up to Sept 2003 Diagnostic

Dodge Durango Programming via Chip

Dodge Ram 2003 Diagnostic

F-errari 430 Program via chip

F-errari 550M Programming Via Chip

F-errari ENZO Scagletti Programming via chip

F-errari F50 Only in our Office / In progress

F-errari F50 Programming Via Chip

F-errari F650 Programming Via Chip

F-errari Modena 360 Programming Via Chip

F-errari Stradale Programming Via Chip

Fiat Brava ST Cluster-Diagnosis

Fiat Bravo MM08 Programming Via Micro

Fiat Bravo NS56 Programming Via Micro

Fiat Daily VDO Chip Programming Via Chip

Fiat Ducato M2002 NEC Programming Via Chip

Fiat Duplo Model 2002 Programming via Chip

Fiat Iveco Daily Programming via Chip

Fiat Marea 2004 Programming via Micro

Fiat Marea 2004 Programming Via Chip

Fiat Marea HC11 Programming Via Micro

Fiat Multipla Cluster-Diagnosis

Fiat Multipla M2002 C56 Programming Via Chip

Fiat Panda Programming Via Chip

Fiat Panda Programming Via Chip

Fiat Panda Chip 95040 Program via chip

Fiat Punto 2002 NEC Programming via Chip

Fiat Punto Jeager 08 Cluster-Diagnosis

Fiat Scudo Programming via Chip

Fiat Seicento Programming Via Chip

Fiat Stilo Programming Via Chip

Fiat Stilo Programming Via Micro

Fiat Ulysee 2004 Programming Via Tacho & BSI

Fiat Ulysse Programmin Via Micro

Ford Connect Programming Via Micro

Ford Connect Programming Via Chip

Ford Cougar Cluster-Diagnosis

Ford Explorer Programming Via Micro

Ford Explorer 2003 Programming Via Micro

Ford F150 2004 Programming Via Micro

Ford F150 HC11 Programming Via Micro

Ford F250 HC12 Programming Via Micro

Ford F350 Program Via Cluster

Ford Feista 2003 Programming Via Chip

Ford Feista 9S12 2006 model Programming Via BDM

Ford Fiesta Cluster-Diagnosis

Ford Focus Cluster-Diagnosis

Ford Focus 2003 Chp & Micro all models Programmin Via chip Or BDM Points

Ford Fusion Programming Via Chip

Ford Fusion Progarmming Via Chip

Ford Galaxy Diagnosis

Ford Galaxy 2000/2006 Diagnosis

Ford Maverick HC11 Programming Via Micro

Ford Mondeo Cluster-Diagnosis

Ford Mustang Programming Via Micro

Ford Puma Cluster-Diagnosis

Ford Ranger Programming Via Cluster

Ford Scorpio Cluster-Diagnosis

Ford Tarus 2003/ Only in our office

Ford Thunderbird 2005/ 2006 model Programming Via BDM

Ford Transit 2003 Programming Via chip

Ford Transit 2004 Programming Via Micro

Ford Transit Model 2003 Programming Via Chip

Ford Transit TVI Chip 66 Progarmming Via Chip

Ford VAN F150 Programming via Chip

Ford Windstar HC11 Programming Via Micro

GM Cadillac Programming Via Chip

GM Cadillac Seville STS Chip Programming via Chip

GM Cadillac Seville STS HC 11 Cluster-Diagnosis

GM Corvette Chip 93C76 Programming via chip

GM Hummer Programming via Chip

GM Hummer 2006 Programming via Tacho & Box

GM Hummer Klms & Hours Programming Via Chip

GM Seville HC11 Programming Via Micro

GM Trans Sport HC12 Programming Via Micro

GM Transport M99 Programming Via Micro

Buel Programming via Chip

Honda Accord Programming via Chip

Honda Accord Type R Programming Via Chip

Honda CBR 1000RR Programming Via Chip

Honda CBR400 Programming Via Chip

Honda Civic Programming via Chip

Honda CRV 2004 Chip 56 Programming Via Chip

Honda CRV Chip 93C56 Programming Via Chip

Honda CRV HC12 Programming Via PCB

Honda HRV Programming via Chip

Honda Jazz Programming Via Chip

Honda Jazz Programming Via chip

Honda Legend Programming via Chip

Honda Logo programming Via Chip

Honda S 2000 Programming via Chip

Honda Shutle Programming via Chip

Honda Stream Programming Via chip

Honda VFR 800 93C46 Programming Via Chip

Hummer Miles & Hours Programming Via chip

Hyundai Coupe Ch 46 Programming Via Chip

Hyundai Getz Programming Via Chip

Hyundai Matrix Ch 46 Programming Via Chip

Hyundai Sante Fe Ch56 Programming Via Chip

Hyundai XG 30 Ch 46 Programming Via Chip

Hyundia Accent Programming Via Chip

Isuzu Trooper Programming via Chip

Jaguar Daimler to 12/97 Cluster-Diagnosis

Jaguar Daimler up 01/98 Cluster-Diagnosis

Jaguar S Type 2005 Program Via Cluster

Jaguar S Type HC12 Programming Via PCB

Jaguar S-Type 2002 HC12 Programming via Micro

Jaguar S-Type to 09/01 Programming via Micro

Jaguar S-Type up 10/01 Programming via Micro

Jaguar XJ 350 Programming Via Micro

Jaguar XK8 Programming via Micro

Jaguar Xtype HC12 Programming Via PCB

Kawasaki GPZ 600 93C46 Programming via Chip

Kawasaki ZX9 93C46 Programming via Chip

Kia Carnival Programming Via Chip

Kia Sorrento Programming Via Chip

Kia Sorrento Programming Via Chip

Lamborghini Gallardo Programming Via Chip

Lancia Lybra Programming via Chip

Lancia Z Programming via Chip

LDV Convoy Van Programming Via Chip

Lexus LS 200 Programming via Chip

Lexus LS 300 Programming via Chip

Lexus LS 400 Programming via Chip

Lexus LS 430 Programming via Chip

Lexus RX300 Programming via Chip

Lincoln Navigator Programming via Chip

Lincoln Navigator 2003 Programming Via Micro

Lotus Elise HC11 Programming Via Micro

Maserati Quattroporte Programming Via chip

Mazda 3 Programming Via Chip

Mazda 323 Programming via Chip

Mazda 6 Programming Via Chip

Mazda 6 Programming Via Chip

Mazda 626 Programming via Chip

Mazda 626 2003 Programming via Chip

Mazda MPV Programming via Chip

Mazda MX5 Programming via Chip

Mazda Premecy Programming via Chip

Mazda RX7 Programming via Chip

Mazda RX8 Programming Via Tacho

Mazda TRIBUTE HC11 Programming Via Micro

Mitsubishi Carisma Programming via Chip

Mitsubishi Colt Programming via Chip

Mitsubishi Eclipse Programming Via Chip

Mitsubishi Galant Programming via Chip

Mitsubishi Grandis Programming Via Chip

Mitsubishi Lancer Programming via Chip

Mitsubishi Outlander Programming via Chip

Mitsubishi Pajero Programming via Chip

Mitsubishi PININ Ch 46 Programming via Chip

Mitsubishi Shogun Ch 56 Programming via Chip

Mitsubishi Space Gear Programming via Chip

Mitsubishi Space Runner Programming via Chip

Mitsubishi Space Star Programming via Chip

Mitsubishi Space Wagon Programming via Chip

Motor Cycles

Nissan Almera 93C46/C56/C66 Programming via Chip

Nissan Infinity Programming via Chip

Nissan Maxima Programming via Chip

Nissan Micra Programming via Chip

Nissan Navaro Programming via Chip

Nissan Pathfinder Programming via Chip

Nissan Pathfinder HC12S Program Via Cluster

Nissan Patrol Programming via Chip

Nissan Pick Up Programming via Chip

Nissan Primera Programming via Chip

Nissan Primera 2004 Programming Via Chip

Nissan Primera 93C56/ C66 Programming Via Chip

Nissan Skyline R34 Programming Via Chip

Nissan Skyline R35 & GT350 Programming Via Chip

Nissan Skyline R35 350GT Programming Via Chip

Nissan Terrano II Cluster-Diagnosis

Nissan Tino Programming Via Chip

Nissan Xtrail Programming Via Chip

Nissan Xtrail C66 Programming Via Chip

Opel Astra Diagnosis

Opel Corsa Diagnosis.

Opel Frontera Programming via Chip

Opel Montery Programming via Chip

Opel Movano Programming Via Chip

Opel Vectra 04/99 Diagnosis

Opel Vectra 2003/2007 Programming Via chip

Opel Vectra to 03/99 Diagnosis

Opel Vivaro M2002 NEC Programming via Chip

Opel Zafira Diagnosis

Opel Zafira 2003./2007 Diagnostic

Peugeot 106 Diagnostic

Peugeot 206 Jaeger Programming Via Micro

Peugeot 206 M2002 NEC All new models Programming Via Chip

Peugeot 306 VDO Cluster-Diagnosis

Peugeot 307 Chip Programming Via Box & Tacho

Peugeot 307 HC12 Programming Via Micros

Peugeot 406 Jaeger Programming Via Micro

Peugeot 406 Sagem Programming via Chip

Peugeot 406 Valeo Box Programming Via Box & Cluster

Peugeot 406 VDO Cluster-Diagnosis

Peugeot 406 VDO 2000/2001 Cluster + BCU

Peugeot 407 Programming Via Tacho & BSI

Peugeot 607 VDO Programmingg Via Box + Cluster

Peugeot 806 Jaeger / Magneti Marelli Programming Via Micro

Peugeot 807 Programming Via Tacho & BSI

Peugeot BOXER Programming Via Chip

Peugeot Partner Programming Via Chip

Porsche 928 Programming via Chip

Porsche 996 09/01/2000 Diagnostic

Porsche 996 2000/2002 BCU Programming Via Box

Porsche 996 to 08/01 Diagnosis

Porsche 996 Turbo Ready Soon

Porsche 996 up 09/01 93C86 Diagnostic

Porsche 997 MCU Program via chip

Porsche 997 Tacho & MCU Programming Via Chips

Porsche Boxster Diagnosis

Porsche Cayenne Diagnostic

Porsche Cheyenne Programming Via Chip

Renault Clio 2004 Programming Via Chip

Renault Clio Jaeger / Magneti Marelli Programming Via Micro

Renault Clio M2002 NEC Programming via Chip

Renault Clio Sagem Programming via Chip

Renault Espace Model 2004 Programming Via Tacho & BSI

Renault Espace to 01/99 Only in our Office / In progress

Renault Espace up 02/99 Programming Via Micro

Renault Espace up 2003 Ch 56 Programming via Chip

Renault Kangoo Programming via Chip

Renault Laguna HC12 Programming Via Micro

Renault Laguna Jaeger Programming via Chip

Renault Laguna MM08 Programming Via Micro

Renault Laguna Sagem Programming via Chip

Renault Laguna ST Micro Programming Via Micro

Renault Master Programming Via Chip

Renault Megane Jaeger / Magneti Marelli Programming Via Micro

Renault Megane Sagem to 09/99 Programming via Chip

Renault Megane Sagem up 10/99 Only in our Office / In progress

Renault Megane Senic Sagem Only in our Office / In progress

Renault R25 Programming via Chip

Renault Safrane Programming via Chip

Renault Traffic Programming Via Micro

Renault Twingo Programming Via Micro

Rolls Royce All Models Only in our Office

Rover 25/45 Programming Via Chip

Rover 75 Programming via Chip

Rover 75 LCM Diagnostic

Rover 75 Light Module Diagnostic

Rover Defender Programming via Chip

Rover Discovery TD5 Programming Via BCU

Rover Freelander to 05/01 Programming via Chip

Rover Freelander to 06/02 Only in our Office / In progress

Rover Landrover Programming via Chip

Rover MGF Programming via Chip

Rover MGTF 2003/2004 Programming Via Micro

Rover Mini Cooper 2 Models up to Sept 2003 Programming Via Cluster & Box

Rover Range Rover Programming via Chip

Rover Range Rover 2001/2002 Programming via chip

Saab 900 Not Implemented

Saab 9-3 Programming via Chip

Saab 93 24C02 Programming Via chip

Saab 93 9S12 Programming Via BDM

Saab 93 Model 2003 All models Programming Via Chip

Saab 9-5 Programming via Chip

Sang Yong Rexton Programming Via Chip

Seat All Diagnosis

Seat Altea Diagnostic

Seat Leon Diagnostic

Seat Toledo Diagnostic

Skoda Fabia 2002 Diagnostic

Skoda Octavia Service inspection & Klms Diagnostic

Smart Four four Cluster & BSI Programming Via Chip & Micro

Smart Smart All models Tacho & BSI Programming Via Box & Cluster

Subaru Forester Programming via Chip

Subaru Impreza Programming via Chip

Subaru Legacy Programming via Chip

Subaru Tribeca Programming via chip

Susuki Liana Programming Via Chip

Suzuki Ignis Programming Via Chip

Suzuki Ignis Programming Via Chip

Suzuki Jimny Programming via Chip

Suzuki Liana 2005 Program via chip

Suzuki TL 1000S Programming via Chip

Suzuki Vitara Programming via Chip

Toyota Avensis Diagnosis

Toyota Avensis 2004 Programming Via chip

Toyota Camry Programming via Chip

Toyota Cellica Programming via Chip

Toyota Corolla Programming via Chip

Toyota Corrolla VDO Programming via chip

Toyota Hi Ace Programming via Chip

Toyota HJ 100 Programming Via Chip

Toyota IGNIS Programming Via Chip

Toyota K95 Programming via Chip

Toyota Land Cruiser 2003 C66 Programming Via Chip

Toyota Landcruiser Programming via Chip

Toyota Landcruiser 2003 Ch66 Programming via Chip

Toyota MR 2 Programming via Chip

Toyota Picnic Programming via Chip

Toyota Prado Programming via chip

Toyota Previa Programming via Chip

Toyota Prious Programming Via Chip

Toyota RAV4 Programming via Chip

Toyota Yaris Programming via Chip

Toyota Yaris Tsport Programming via Chip

Vauxhall Astra 2004 Programming Via Chip

Vauxhall Astra 2004 Programming Via Chip

Vauxhall Meriva Diagnostic

Vauxhall Movano Programming Via Chip

Vauxhall Speedster Programming Via Chip

Vauxhall Vectra 2004 Programming Via Chip

Volvo S40 / V40 Programming via Chip

Volvo S60 / V60 Programming via Chip

Volvo S80 up 02/99 Cluster-Diagnosis

Volvo V40 Model 2003 on Programming Via Chip

Volvo V50 Programming Via Micro

Volvo V60/V70/V80. Model 2002 Programming Via Micro

Volvo V70 2002 HC12 Cluster-Diagnosis

Volvo V70 to 01/99 Programming via Chip

Volvo V70 up 02/00 Cluster-Diagnosis

Volvo V70 up 02/99 to 01/00 Cluster-Diagnosis

Volvo V70 V2 HC12 Cluster-Diagnosis

Volvo XC 70 2003/2004 Programming Via Micro

Volvo XC 90 2003/2004 Programming Via Micro

Volvo XC70 2004 Model Programming Via Micro

Volvo XC90 2004 Model Programming Via Micro

VW Bora Diagnosis

VW Caddy Cluster-Diagnosis

VW Caddy 2005 Diagnostic

VW Corrado Cluster-Diagnosis

VW Crafter Programming Via Chip

VW Golf 3 Cluster-Diagnosis

VW Golf 4 Diagnosis

VW Golf 4 24C08 Chip Programming Via Chip

VW Golf 4 All models Diagnostic

VW Golf Mk 5 up to August 2006 Diagnostic

VW Golf Visteon Diagnostic

VW Golf5 Up to August 2006 Diagnostic

VW LT Cluster-Diagnosis

VW Lupo Diagnosis

VW New Beetle Diagnosis

VW New Sharan Diagnosis

VW Passat B3 Cluster-Diagnosis

VW Passat B5 Diagnosis

VW Passat B6 up 12/00 Diagnosis

VW Pheaton Bosch Diagnostc

VW Polo Diagnosis

VW Polo 2003 Diagnostic

VW Sharan Diagnosis

VW Sharan 2006 model Diagnostic

VW T4 Bus Cluster-Diagnosis

VW Taro Cluster-Diagnosis

VW Touareg Diagnostic

VW Touran Service Inspection Diagnostic

VW Vento Cluster-Diagnosis

Wiesmann Roadster Programming via chip

Yamaha R6 Programming Via Chip

Yamaha R6 Programming via Chip

Yamaha VTR 1000 93C46 Programming via Chip

Yamaha Wild Star 93C46 Programming via Chip

Yamaha YZF-R1 93C46 Programming via Chip

Package including:

One unit of Main interface

One unit of OBD2 cable

Many unit of adaptors and cables

Berminat Hubungi  :

Nama : Agus yulianto

Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08

  Plosogeneng Jombang, 61416 Jawa Timur

Telp : 081332787811

Web  :

www.obd2jatim.com

Blog  :

http://Toolsteknik.blogspot.com

http://obd2murah.blogspot.com

http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim

https://www.facebook.com/obd99

Lokasi toko/rumah Google map

https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI
