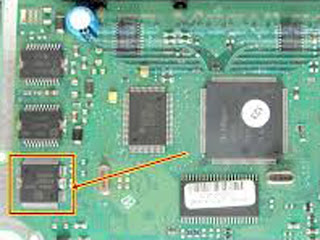

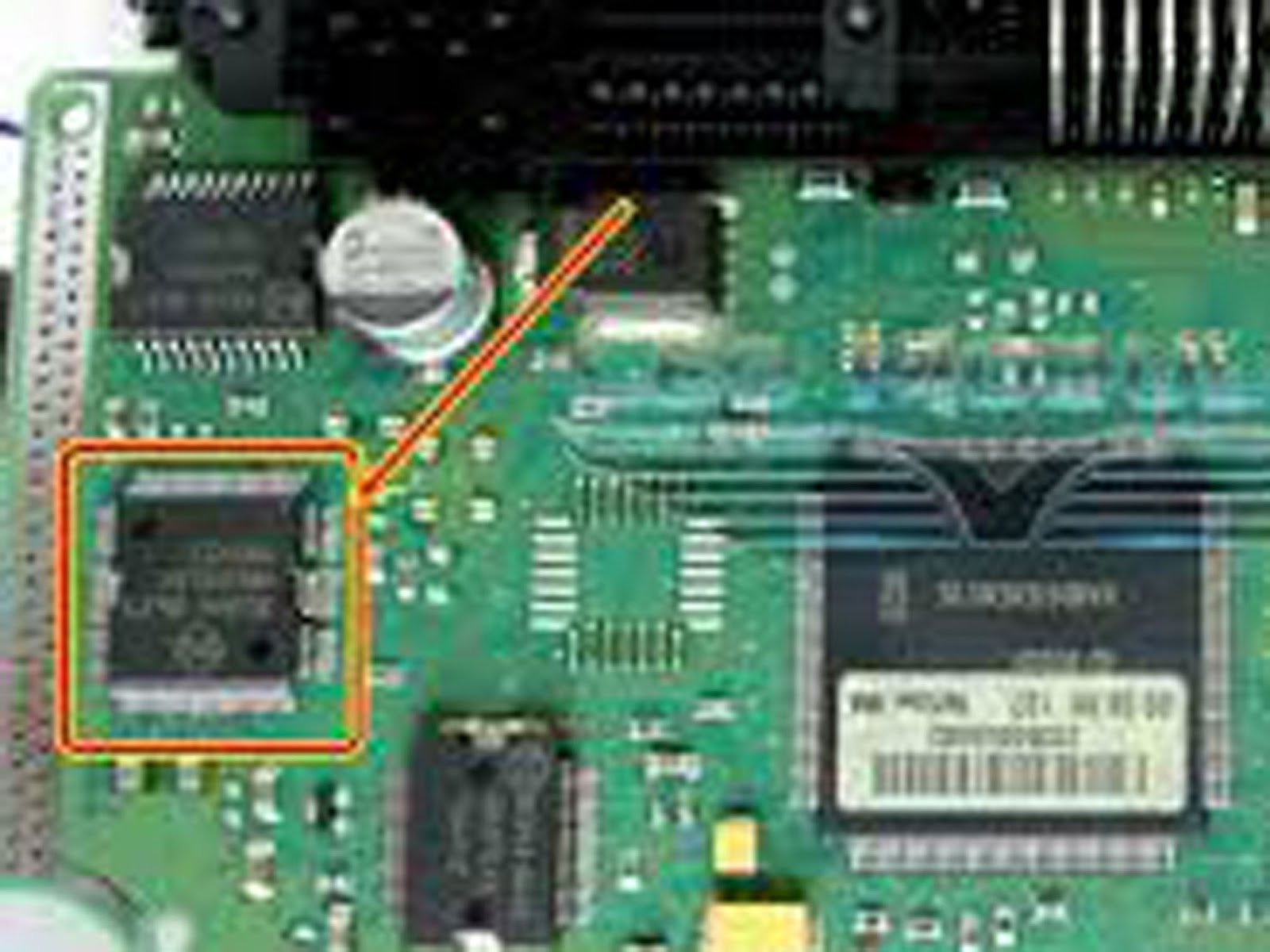

TB9006FG Car ECU Board Repair Chip

TB9006FG Car ECU Board Repair Chip


TB9006FG TB9006F TB9006FG TB9006GFG TB9006FG HSSOP-36 AUTO ECU CHIPS BCM CHIPS MCU CHIPS
Automobile CPU dual regulator, built-in watchdog timer
HSOP36 TB9006FG / TB900GFG Car ECU electronic IC is Car engine control drive chip, TB9006FG Car ECU board repair Chip is easily damaged parts on automotive engine module controller board, TB9006FG automotive dashboard module Drive IC, and the Auto computer ECU Integrated Circuit IC for car electronic repair.




TB9006FG Car ECU Board Chip Automotive Engine Control IC
Feature
Dual power supply voltages with integrated power MOSFET:5V+5V / Selectable reset voltage level:4.4V/4.2V
Absolute Maximum Ratings
Output Current (Max) 250 mA
Output Current mA
Operating Temperature (Max) 125
Operating Temperature (Min) -40
Storage Temperature (max) 150
Storage Temperature (min) -55
Input Voltage 40V
Input Voltage (1sec) 45 V

Package Include :
1 X TB9006FG Car ECU BCM  Board Chip Automotive

PWM Generator Digital LED Duty Cycle Pulse Frequency 2 Channel

PWM Generator Digital LED Duty Cycle Pulse Frequency 2 Channel



2 Channel Dual Way Independent PWM Generator Digital LED Duty Cycle Pulse Frequency Board Module 5-30V/Micro Usb 5V Power




Highlights:
1. Two independent PWM generators can set the frequency, duty cycle;
2. The wide frequency range, high accuracy;
3. Can serial communication.

First, the module description:
Frequency is divided into three ranges:
1. XXX (no decimal point): the smallest unit is 1Hz, the range 1Hz ~ 999Hz;
2. XX.X (decimal point in ten): The minimum unit is 0.1Khz; the range of 0.1KHz ~ 99.9KHz
3. X.X.X. (there are three decimal point): the smallest unit is 1Khz; the range 1KHz ~ 150KHz

Frequency display example:
"100" indicates that the PWM output pulse of 100Hz;
"54.1" indicates that the PWM output pulse of 54.1KHz;
"1.2.4." Indicates that the PWM pulse output 124KHz
Duty Cycle in the range: 0 to 100;
Three frequencies duty cycle is the same, all the parameters non-volatile.
Second, the module parameters:
1. Working voltage: 5--30V, support micro USB 5.0V power supply;
2. Frequency range: 1Hz ~ 150KHz;
3. The frequency accuracy: ± 2%;
4. Output Current: <30mA;
5. Output amplitude: Default 5Vp-p (settable);
6. Operating temperature range: -30 ~ + 70 °.

Third, the parameter settings:
Module has three buttons [Set], [Up], [Down];
1. Press [Set] key to switch the display four parameters (FR1: PWM1 frequency; dU1: PWM1 duty cycle; FR2: frequency of PWM2; dU2: PWM2 duty cycle), before the handover parameters, there will be corresponding parameter name flash.
2. Press [Up], [Down] keys to modify the current parameter value (long press can quickly add or subtract fast).
3. Two PWM each have three preset frequency, the frequency display interface, long press [SET] key to switch between three types of frequencies, three kinds of frequency duty cycle is the same value. (XXX: range 1Hz ~ 999Hz; XX.X: range 0.1Khz ~ 99.9Khz; X.X.X .: range 1Khz ~ 150Khz,).
Fourth, the scope:
1. As square wave signal generator which generates a square wave signal;
2. to provide a signal to the stepping motor driver;
3. Adjustable pulse generation for chip use;
4. produce variable pulse signal, the control-related circuit (PWM dimming, speed).
Fifth, the serial control
Baud rate: 9600 bps
Data bits: 8
Stop bits: 1
Parity bit: none
Flow control: none
1, set the PWM frequency
"S1FXXXT": setting PWM1 frequency of XXX HZ (001 ~ 999)
"S1FXX.XT": set the frequency of PWM1 XX.X KHZ (00.1 ~ 99.9)
"S1F: X.X.X.T": setting PWM1 frequency of XXX KHZ (0.0.1 ~ 1.5.0..)
'S1': PWM1
'S2': PWM2
'F': Frequency
'D': Duty Cycle
'T' is the end flag
1. Set the PWM duty cycle
"S1DXXXT": setting PWM1 duty cycle XXX; (001 ~ 100)
"S2DXXXT": set PWM2 duty cycle XXX; (001 ~ 100)
Setting successful return: DOWN;
Setting failback: FALL.

Package Included:
1 x 2 way Independent PWM Generator

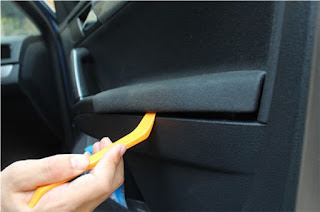

Audio Installer Car Removal Open Tools Door Clip Kit Panel Radio Trim Dash

Audio Installer Car Removal Open Tools Door Clip Kit Panel Radio Trim Dash




Car Removal Open Tools Door Clip Kit Panel Radio Trim Dash Audio Installer
Auto Car Trim Pry Removal Tool Kit Door Panel Clip Interior Light Dash Molding
SST Car Panel Removal Installer Pry Repair Tool Radio Panel Door Clip

Specifications:
Item  : fit for All Car models
Condition : 100% Brand new
Quantity   : 4 PCS
Weight      : Approx 0.10kg for 4pcs
Color : Orange
Material   : Plastic Nylon
Include         : removal installation tool x 4
Color : As shown in picture






Features:
Useful pry tool for safely removing and installing car audio, exterior and interior trim, dash, door panel avoid scratching your car
The tool could efficiently reduce the concave and protruding scars left by using the screw knife to remove
It could reduce the abrasion possibility of inner car decorating
The tools are designed to fit any car model
With unique anti scratch and energy saving design.
Car stereo remove good helper contains most of the car audio market remove tool Multi-function combination tool, designed for the cars on the market today.
Remove the inner plate of the car, instrument desk, sound control area, so this is your good helper.
The fine workmanship, excellent material, combination tools and give a good gift to a friend.
Containing metal become warped board compared to previous sales tool construction stress pretty hard and easy to become warped bad door buckle card since the use of iron or stainless steel material tool surface hard especially will damage the paint after the part is used in different parts of the leaves become warped.
This is modified to upgrade tool, as well as to ensure the service life of the tool and the intensity abandon. Metal materials are all made of very good quality synthetic material, have certain elasticity, good toughness, the door when it can be better saving power works, also won't stay up mark like metal become warped in the car
Species is very complete, including remove the door plank and interior become warped plate, all kinds of sound keys, and so on, has certain elasticity, smooth and maximum protection of car parts complete disassembly
You can refit car audio in best times through using this product.
And the plastic construction of No-Scratch removel tool can avoid causing any damnification to your vehicle.
Incidental tool kit suitable for different vehicles.
This removal installation tool can prevent your car from scratching and damaging.
It is easy to carry and convenient to use, just put in your car.

Package Included:
1 Set Car Panel Removal Tool set (4 PCS /Set)

Update Launch X431 Easydiag Mdiag Golo X-diag Master IV Pro3 Pro3s dan Pro3s Pluss 2018

Update Launch X431 Easydiag  Mdiag Golo  X-diag Master IV Pro3 Pro3s dan Pro3s Pluss 2018




Bagi yang berminat Update Easydiag Versi Terbaru monggo kamiSiap bantu dengan cara kirim no Serial Number Easydiag, Mdiag maupun golo
File Update kami kirim Via Flashdisk 8 Giga, Mengingat data car untuk Versi Terbaru mencapai 6 Gb lebih




Adapun Data Car  Versi terbaru
Meliputi merk : Asia, Cina, Domestic, Eastern Europe, North America, Western Europe
Launch X431 Easydiag Plus Key Specifications/Special Features:
1. Full OBDII generic code reader/scanner capability included at no charge
2. Reads and clears codes on all vehicle systems
3. Complete system and subsystem coverage (engine, ABS, SRS, transmission and more) with live date and color graphing
4. Enhanced live date and for all vehicle system
5. Includes Bluetooth OBDII connector-optional extension cable available for easier plugging and unplugging of OBDII connector
6. Intuitive interface and easy to use
7. Customizable software-choose from over 180 Asian, European and North American manufacturer for enhanced capability
8. Single carline software priced individually per vehicle manufacturer

Reads and clears codes
•         ME-Motor electronics,CDI-Common Rail Diesel Injection,ETC-Electronic transmission control,
•         ESM-Electronic selector module,
•         SBC- Sensotronic Brake Control,
•         ESP-Electronic stability program,
•         BAS-Brake assist,
•         Suspension,
•         TPC-Tire pressure monitor,
•         Airbag,
•         CGW-Central gateway,
•         EIS-Electronic ignition switch,
•         OCP-Overhead control panel,
•         UCP-Upper control panel,
•         XALWA-Xenon headlamp,
•         HRA-Headlamp range control,
•         ATA-Anti-theft alarm system,
•         IC-Instrument cluster,
•         ASSYST-Active Service System,
•         SCM-Steering column module,
•         EPS-Electrical power steering,
•         PTS- Parktronic system,
•         EPB-Electric parking brake,
•         COMAND/AUDIO,
•         CD/DVD,
•         TV tuner,
•         CTEL-Cellular telephone,
•         DCM-Door control module,
•         ESA driver-Electric seat adjustment driver,
•         ESA passenger-Electric seat adjustment passenger,
•         AAC-Air conditioning,
•         WSS-Weight sensor system,
•         SVMCM-Special vehicle multifunction control module,
•         etc.

Complete system and subsystem coverage
•         Quick Test,
•         Read ECU Info.,
•         Read DTCs,
•         Erase DTCs,
•         Clear learning value,
•         Data Stream,
•         Actuations,
•         Read freeze frame data,
•         Read/Write VIN,
•         Basic Reset,
•         Control unit adaptations,
•         Throttle adaptations,
•         Air bleeding,
•         Level calibration,
•         Theft alarm Reset,
•         Key programming,
•         Oil change,
•         Idle speed learning,
•         Idle speed Adjustment,
•         Ignition timing adjustment,
•         Camshaft timing control learning,
•         Maintenance functions,
•         ECU Initial startup,
•         ECU initialization,
•         etc.

Maintenance service Special functions or Reset,
•         RESETBLEED
•         RESETBMS
•         RESETBRAKE
•         RESETDPF
•         RESETETS
•         RESETOIL
•         RESETSAS
•         RESETTPMS
•         RESETAFS
•         RESETBOX
•         RESETGEAR
•         RESETIMMO
•         RESETINJEC
•         RESETODO
•         RESETSUN
•         RESETSUS

Expert service system,   according to customers’ requirement list focus on special functions
•         such as Oil change,
•         Idle speed learning,
•         Idle speed Adjustment,
•         Air bleeding,
•         Level calibration,
•         Throttle adaptations,
•         Steering Angle Sensor Calibration,
•         EPB Reset,
•         DPF Reset,
•         ECU Initial startup,
•         ECU initialization,
•         etc.

Golo Launch X431 Easydiag Plus Free 2 Car Professional Enhanced

Golo Launch X431 Easydiag  Plus Free 2 Car Professional Enhanced



Compared with professional handheld scan tool, Golo Easydiag+ offers economical and cost-effective solution for auto mechanics. Having full access to electronic control modules, Users can view data, read and clear CEL and enhanced codes, and perform bi-directional controls on virtually all proprietary systems. Its ultra-portability makes it the perfect go-to code reader and reset tool for today’s auto enthusiasts.

Golo easydiag+ Premium comes with 2 free carline software.Throught the intuitive interface, users can purchase and download specific special tools or carline software directly according to their own needs.

Features:
Full System Scan *
Special Functions *
Includes 1 car software
Supports 12V vehicles only
Read Data Stream PID’s
Read Freeze Frame Data
Read and clear CEL codes
Read and clear enhanced codes.
*with manufacturer downloaded





Description:
Directly Update Online: Update on EZdiag app
Compatible with all Apple & Android phones
Extended live data function for various vehicle system
Supports 1996 or newer 16-pin OBDII complaint vehicles
Multi-Language available: English, Russian, Spanish, ,French.etc
Read and Clear CEL Codes: Confirmed, Pending, and Permanent for all makes,
Read and Clear Enhanced Codes for cars downloaded: ABS, Airbag, Transmission etc
Read freeze frame data: Vehicle snapshot when a code is stored,
 Widest carline software coverage: Support the generic OBD, CAN bus, and proprietary protocols of over 70 car manufacturers and 2, 500 car models.
Support multiple special function software and actuation tests including: Oil / Service reset, ABS bleeding, IMMO & key programming, throttle body adaptation, brake pads, steering angle reset, battery matching, DPF regeneration, Injector coding Etc

Catatan :
Golo easydiag plus gratis software 2 mobil dan eobd2

100% Original Launch X431 M-Diag Lite Plus for iOS and Android

100% Original Launch X431 M-Diag Lite Plus for iOS and Android


Quick Detail:
M-Diag is an easy to use OBDII diagnostic tool designed with the professional technician in mind.
The device is small and portable, yet powerful enough to rival its competitors.
Users have the option to purchase manufacturer specific carline software based on their needs.
This feature allows for full-system diagnostics including bi-directional capabilities, quickly and easily from the convenience of your smart phone.




Launch scanner M-Diag Features
1.I/M Readiness Monitor
2.Read DTC’s
3.Clear DTC’s
4.Read Freeze Frame Data
5.Read and Graph Data Stream PID’s
6.Full System Scan *
7.Actuation Tests
8: Special Functions
9. with manufacturer specific carline software

Launch scanner M-Diag Highlights
1: Small and portable
2: Light and small OBDII device, easy to handle;
3: Plug and play through Bluetooth connection with smart phone.
4: Widest car line software coverage
5: Support the generic OBD, CAN bus, and proprietary protocols of over 70 car manufacturers and 2,500 car models;
6: Support multiple special function software and actuation tests.
7: Economical but powerful
8:Options to purchase manufacturer specific carline software based on needs;
9:Full-system diagnostics including bi-directional capabilities.


Top 6 Reasons to Get Launch M-Diag Lite Plus:
1.Multi-Language available: English, Spanish, French, Russian, Traditional Chinese
2.Directly Update Online: update at Launch golo official site: www.goloiov.com
3.Light and small OBDll device, easy to handle
4.Plug and play through Bluetooth connection with smart phone
5.Widest carline software coverage: Support the generic OBD, CAN bus, and proprietary protocols of over70 car manufacturers and2, 500 car models;
6.Support multiple special function software and actuation tests incl. Oil / Service reset,  ABS bleeding, IMMO & key programming, throttle body adaptation, brake pads, steering angle reset, battery matching, DPF regeneration, Injector coding


Package List:
1pc x M-Diag Connector
1pc x Password Paper

M-Diag VS. Easydiag:

Launch M-diag :
1. Launch M-Diag Lite official website : www.goloiov.com (will be available soon)
2. The green indicator blinks means it's working normally. The red indicator blinks means Bluetooth connection OK.
3. Golo M-Diag Lite supports both Android and IOS systems, the update frequency depends on Android and IOS systems.
4. Bluetooth pair needs no password, if it needs, try 0000 or 1111.
5. Android users’ guide: Install APP ->complete registration -> click the specific car software to download.
IOS users’ guide: Install app -> complete user registration-> click the specific car software to download, note: you are required to download the corresponding market software, otherwise it won’t work.
6. Please make sure to complete download car software firstly and then download free software like EOBD & DEMO, if not it may cause device malfunction.
7. 7. M-Diag Lite has FCC and CE certification; please feel free to use it.
8. iOS system currently supports the special functions including DEMO, EOBD2, Oil / Service reset, brake pads reset and steering angle reset, more 7 kinds of special function will be added.
9. Android system supports 11 special functions including: IMMO & key programming, Odometer Adjustment, Oil / Service reset, ABS bleeding, TPS throttle body adaptation, brake pads reset, Steering angle reset, battery matching, DPF regeneration, Injector coding, Tire Pressure Warning Light Reset, gear learning.
10. M-Diag Lite can access to the full system of vehicles developed in the list
11. 10. M-Diag Lite has no area limitation, the available language including Chinese Simple, English, French, Spanish, Russian
12. and Chinese Traditional. The user is allowed to change the language of APP and download the models. Kindly notice, don’t download all languages or it will take up the capacity of your phones or tablets.
13. Support password recovery
Passwords can be retrieved only if users fill in the real E-mail during the registration.
14. Support 12V cars
Here is a brief introduction of special functions in the main menu and that under a model.
1. Special function in the main menu
If users choose special functions in the main menu and select one, then users can perform this function for all models developed in the list.
For example, users go to Special Functions in the main menu for oil reset, they can reset oil for all cars listed there like for BMW, for Toyota, for Honda and cannot go to diagnosis for others.
15. Special functions under a model
That is a special function like oil reset after users go to for BMW software.
For example, users go to for BMW software,
16. there must be lots of functions incl. Special Functions. Then, they can select oil reset for BMW model.
17. Launch X431 iDiag Auto Diag scanner will not come with software in the package, only hardware.
But we will offer you Launch X431 register name & password.
18. Small and portable
Light and small OBDll device, easy to handle;
Plug and play through Bluetooth connection with smart phone
19. Widest carline software coverage
Support the generic OBD, CAN bus, and proprietary protocols of over70 car manufacturers and2, 500 car models;
Support multiple special function software and actuation tests.
20. Economical but powerful
Options to purchase manufacturer specific carline software based on nee
21. Full-system diagnostics including bl-directional capabilities 1pc x M-Diag Device

Easydiag 3.0 Diagnostic Scan Tool All System

Easydiag 3.0 Diagnostic Scan Tool All System


Launch Easydiag 3.0, upgraded version of Easydiag 2, is an ultra-smart OBD-II code reader & scanner developed specially for auto mechanics, students and DIY users. It turns your Apple or Android smart device into a powerful diagnostic scan tool, giving users full access to engine, transmission, ABS(Brakes), SRS( Seatbelts and Airbag) Systems. A highly intuitive menu guides mechanics through step-by-step procedures for viewing and clearing error codes, along with the ability to view enhanced live data.
To download the applicable application with easydiag 3.0,  you have to scan QR code on the package and activate the connector.





Description:
Easygoing for Android device into a powerful diagnostic scan tool, giving the technician full access to Engine, Transmission, ABS (Brakes), SRS (Seatbelts and Airbag) systems and more. A highly intuitive menu guides technicians through step-by-step procedures for viewing and clearing trouble codes, along with the ability to view enhanced live data. Full color graphing for OBD II is also available. This scan tool does not require an interface. A single Bluetooth connector along with the company\'s software allows the user to select from over 30 manufacturers for Asian, European and Domestic applications.

Note:
Works on 12V vehicle battery ONLY. It Will be burned if working on to other voltage power.
Free and Paid software are available to download and update within only 1 year after paid on App.
EasyDiag 3.0 Plus includes 2 free vechicles software +EOBD
EasyDiag 3.0 only includes a connector,without any free software

Features:
Vehicle diagnostic tool & Convenient, economical and advanced vehicle accessories
1.Supports OBD-II protocol, 10 test modes
2.OBD software download
3.Built-in Bluetooth module
4.Compatible with Andriod and iOS devices
5.Support all cars with 16-pin OBD port
6.Reads all DTCs and supports live data stream display

Key Specifications/Special Features:
Full OBDII generic code reader/scanner capability included
Reads and clears codes on all vehicle systems
Complete system and subsystem coverage (engine, ABS, SRS, transmission and more) with live date and color graphing
Enhanced live date and for all vehicle system
Includes Bluetooth OBDII connector-optional extension cable available for easier plugging and unplugging of OBDII connector
Intuitive interface and easy to use
Customizable software-choose from over 70 Asian, European and North American manufacturer for enhanced capability
Single carline software priced individually per vehicle manufacturer
Additional coverage, capabilities and functions with each new software update
It supports lots of language:
Works on most 1996 and newer vehicles (OBD II & CAN)
Full OBDII generic code reader/scanner capability included at no charg
Reads and clear enhanced diagnostic error codes on free/paid vehicles
Complete system and subsystem coverage (engine, ABS, SRS and transmission ) with live data
Includes an extension cable available for easier plugging and unplugging of OBDII connector
Intuitive interface and easy to use with an application on the smartphone
Customizable software-Choose from over 70 Asian, European and North American manufacturers for enhanced capability
Single carline software priced individually per vehicle manufacturer.
 Additional coverage, capabilities and functions with each new software update


Car Brand Supported:

USA:
for BXGM, for CHRYSLER, for G-M, for USAFO-RD etc.

European:
for AU-DI, for BE-NZ, for BM-W, for CITROEN, for DACIA, for EUROFORD, for FIAT, for GAZ, for GMSA, for JAGUAR, for LANCIA, for LANDRO-VER, for MINI, for OPEL, for PEUGEOT, for PORSC-HE, for RENAULT, for ROMEO, for ROVER, for SAAB, for SEAT, for SKODA, for SMART, for SPRINTER, for VAZ, for VOLVO, for VW, for FO-RD etc.

Aisan:
for ACURA, for DAEWOO, for DAIHATSU, for HOLDEN, for HONDA, for HYUNDAI, for INFINITI, for JPISUZU, for KIA, for LEXUS, for MAHINDRA, for MARUTI, for MAZDA, for MITSUBISHI, for NISSAN, for PERODUA, for PROTON, for SSANGYONG, for SBA-RU, for SUZUKI, for TATA, for TLISUZU, for TO-YOTA etc.

Specification:
 Connection Method:Standard OBDII Interface,Micro USB2.0;
Typical Consumption:(12V) Static Current 25mA
Average Working Current of Overall Unit: 35mA
Working Temperature:-20 to 55C (-4 to 131F)
Storage Temperature:-30 to 70C (-22 to 158F)
Storage Humidity:<80%
Working Humidity: <60%
Dimension:LxWxH=48mmx24mmx32mm
Net Weight:Approx 26g
Working Voltage:Powered by vehicle battery, DC 9-15V

Packaging Lists:
1 x EasyDiag 3.0 Connector
1 x Activation paper
1 x Cable Extension

Denso Three Pin Wrench Of Common Rail Injector Tools For Denso Injector Repair

Three Pins Wrench SST Spesial Tool Denso Common Rail Diesel Repair Injector Nozzle



Common Rail Injector Disassemble Three Pins Wrench Tool For Denso Nozzle
Denso Three Pin Wrench Of Common Rail Injector Tools For Denso Injector Repair
used for Denso injector part of three-pin wrench
Spesial Tools SST Denso Common Rail Injector Three Jaw Wrench




Packaging Details
Unit Type : Piece
Package Weight : 0.5kg (1.102lb.)
Package Size : 3cm x 2cm x 3cm (1.18in x 0.79in x 1.18in)

Sewaktu kita bongkar Nozel Common Rail kita akan menemukan kendala pada waktu melepas Valve Seat, untuk itu dibutuhkan spesial tools atau sst “Common Rail Injector Three Jaw Wrench” dengan SST tersebut pekerjaan jadi mudah dan tidak menyebabkan kerusakan pada valve nya, mengingat pentingnya SST tersebut perlu sekali kita mempunyai khususnya bagi yang melakukan pembongkaran nozel common Rail .

Package Include
1 X Spesial Tools SST Denso Common Rail Injector Three Jaw Wrench

SST Open Ecu Repair Service Cover Open Tool For Kess Ktag Fgtech

SST Open Ecu Repair Service Cover Open Tool For Kess Ktag Fgtech




ECU Open Tool For Kess Ktag Fgtech chip tuning tool. Kess Ktag
Features:
Works Perfect With ECU Chip Tuning Tools.
Remove The Cover Without Damaging Or Deforming It.
Works Perfect With ECU Tunning Tools, Such As KTAG, KESS, FGTECH.
This Tool Is Designed To Remove/ Install Car ECU Computer Cover Easily.
Car Computer Removal Tool
Remove/ Install Car ECU Computer Cover Easily. Kess Ktag Fgtech
ECU Opening Tool Works Perfect With ECU Chip Tuning Tools.
Kess Ktag Fgtech ECU Opening Tool ECU Cover Extractor Car Computer Removal Tool Pefect For KTAG KESS FGTECH.



By Screwing The Tools Instead Of Screws, The Cover Is Lifted Upwards In A Uniform Manner, Avoiding To Fold Or Damage The ECU When Inserting Screwdrivers For Leverage
To Facilitate The Removal Is Advised To Heat The Lid So That The Silicon Softens.
Recomend: Minimum Quantity Purchased 4 Or 6 Pieces To Be Able To Work Better
This Tool Is Designed To Remove/ Install Car ECU Computer Cover Easily.
Need To Use Four Or Six At A Time Depending On The Type Of ECU Coverage.
Must Be Fixed In Place Of The Screws On The Control Unit And Allow The User
Five Reansons To Get The Ecu Cover Open Tool
100% Brand New & High Quality Of ECU Cover Extractor Car Computer Removal Tool.

Packing List:
1 X ECU Cover Open Tool

Shaft Coupling 5mm To 8mm Flexible Coupler OD 19x25mm CNC DIY

Shaft Coupling 5mm To 8mm Flexible Coupler OD 19x25mm CNC DIY


Material          : Aluminum Alloy
Coupler Height(L) : 25 mm
Coupler Diameter : 19 mm
Top Shaft Diameter : 5mm
Bottom Shaft Diameter : 8mm
Screws Position : M4*16PCS
Flexible          : Shaft Couplers






 Connect your stepper motor shafts to the shafts of your lead screws with this flexible aluminum coupler which is precision-machined for superb quality and excellent reliability.
A lightweight locking shaft coupler
Flexible design helps compensate for misaligned parallels and axial
Zero rotation clearance
Oil-resistant and anti-corrosive
Often used to connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.Material: Aluminum Alloy


Package Include :
1 X Shaft Coupling 5mm To 8mm Flexible Coupler OD 19x25mm

Driver Ignition Injector BOSCH 30403 Automotive Electronics

Driver Ignition Injector  BOSCH 30403 Automotive Electronics



BOSCH 30403
Manufacturer : Bosch.
Reference To Part : 30344, 30403, 30578, 30579, 30614, 30621, 480071.
Encapsulation : Pqfp-64.





Substitute : Bosch 30344, Bosch 30403, Bosch 30578, Bosch 30579, Bosch 30614, Bosch 30621, Bosch 480071.

Where Can Be Found : Ecu Bosch Honda, Bosch Me7.4.4, Bosch Me7.5, Bosch Me7.5.10, Bosch Me7. 5.20, Bosch Me7.5.30, Bosch Me7.9.6, Bosch Me7.9.7, Bosch Me7.9.9, Bosch Mp7.2, Bosch Mp7.2, Edc15c2 Tracker, Edc15c3 Master, Edc15c6 Sprinter, Edc15c7 Ducato, Edc15c13 Master, Edc16 Nissan, Opel,Audi A6, Mercedes CDI ECU driver IC QFP-64 Etc.

Package Include :
1 X BOSCH 30403

Original Launch EasyDiag 2.0 Plus For Android and IOS 2 IN 1 includes Software

Launch EasyDiag 2.0 Plus Original Includes software



Original Launch EasyDiag 2.0 Plus For Android and IOS 2 IN 1 includes Software

Description:
Easygoing from Launch for Android device into a powerful diagnostic scan tool, giving the technician full access to Engine, Transmission, ABS (Brakes), SRS (Seatbelts and Airbag) systems and more. A highly intuitive menu guides technicians through step-by-step procedures for viewing and clearing trouble codes, along with the ability to view enhanced live data. Full color graphing for OBD II is also available. This scan tool does not require an interface. A single Bluetooth connector along with the company\'s software allows the user to select from over 30 manufacturers for Asian, European and Domestic applications.

Launch EasyDiag Highlight:
Vehicle diagnostic tool & Convenient, economical and advanced vehicle accessories
1.Supports OBD-II protocol, 10 test modes
2.Free OBD software download
3.Built-in Bluetooth module
4.Compatible with Andriod and iOS devices
5.Support all cars with 16-pin OBD port
6.Reads all DTCs and supports live data stream display

Key Specifications/Special Features
1.Full OBDII generic code reader/scanner capability included at no charge
2.Reads and clears codes on all vehicle systems
3.Complete system and subsystem coverage (engine, ABS, SRS, transmission and more) with live date and color graphing
4.Enhanced live date and for all vehicle system
5.Includes Bluetooth OBDII connector-optional extension cable available for easier plugging and unplugging of OBDII connector
6.Intuitive interface and easy to use
7.Customizable software-choose from over 70 Asian, European and North American manufacturer for enhanced capability
8.Single carline software priced individually per vehicle manufacturer
Additional coverage, capabilities and functions with each new software update
9.It supports lots of language:

Specification:
Connection Method:Standard OBDII Interface,Micro USB2.0;
Typical Consumption:(12V) Static Current 25mA
Average Working Current of Overall Unit: 35mA
Working Temperature:-20 to 55C (-4 to 131F)
Storage Temperature:-30 to 70C (-22 to 158F)
Storage Humidity:<80%
Working Humidity: <60%
Dimension:LxWxH=48mmx24mmx32mm
Net Weight:Approx 26g
Working Voltage:Powered by vehicle battery, DC 9-15V

R11 Collet Chuck Motor Shaft Extension Inner 8mm or 5mm For DIY CNC Routher

R11 Collet Chuck Motor Shaft Extension  Inner 8mm or 5mm For DIY CNC Routher



ER11 Collet Chuck Motor Shaft Extension Rod Spindle Collet Lathe Tools Holder Inner 8MM For CNC Milling Boring Grinding





Description:
This collet is made of high quality steel for milling lathe tool and work-holding engraving machine. ER straight rod type collet extension handle body is relatively long, suitable for deep hole processing. The nut can be directly tightened to provide a powerful clamping force. This collet  can reduce costs, improve efficiency and would be a good replacement part for your old one.

Features:
This motor shaft collet is made of high quality steel material, straight shank with clamping nut to be tightened.
Extension rod diameter and the other parts are precision ground to eliminate unbalance, increase safety when cutting.
Straight extended shank fits for deep processing, meeting the needs of extending the depth of processing.
Collet is well packed in a protective container with label for safe transportation and storage.
It is widely used in boring, milling, drilling, tapping, grinding and other processing.

Specifications:
Type : ER11A-5mm ER11A-8mm(Optional)
Material   : Steel
Height : 40mm / 1.57"
Shaft Diameter : 16mm / 0.63"
Shaft Inner Diameter      : 5mm(±0.02mm) / 0.19" 8mm(±0.02mm) / 0.31"
Nut Diameter : 19mm / 7.48"
Nut Inner Diameter : 9mm / 3.54"

Package Includes:
1 x Collet ER11A-5mm ER11A-8mm(Optional)
Tinggalkan Catatan 5mm atau 8mm

ER11 Collet Chuck Motor Shaft Extension Rod Spindle Inner 5mm For CNC DIY

ER11 Collet Chuck Motor Shaft Extension Rod Spindle Inner 5mm For CNC DIY



ER11 Collet Chuck Motor Shaft Extension Rod Spindle Collet Lathe Tools Holder Inner 5mm  For CNC Milling Boring Grinding




Description:
This collet is made of high quality steel for milling lathe tool and work-holding engraving machine. ER straight rod type collet extension handle body is relatively long, suitable for deep hole processing. The nut can be directly tightened to provide a powerful clamping force. This collet  can reduce costs, improve efficiency and would be a good replacement part for your old one.

Features:
This motor shaft collet is made of high quality steel material, straight shank with clamping nut to be tightened.
Extension rod diameter and the other parts are precision ground to eliminate unbalance, increase safety when cutting.
Straight extended shank fits for deep processing, meeting the needs of extending the depth of processing.
Collet is well packed in a protective container with label for safe transportation and storage.
It is widely used in boring, milling, drilling, tapping, grinding and other processing.

Specifications:
Type         : ER11A-5mm  Material: Steel
Height      : 40mm / 1.57"
Shaft Diameter : 16mm / 0.63"
Shaft Inner Diameter : 5mm(±0.02mm) / 0.19" 8mm(±0.02mm) / 0.31"
Nut Diameter   : 19mm / 7.48"
Nut Inner Diameter  : 9mm / 3.54"

Package Includes:
1 x Collet Inner 5mm

CS Online

Sms/Telp
Hp 081332787811
atau
Kantor 0321 852845

Agus Yl

Bank Payment


No. Rek: xxxx-xxx-xxx
An. Agus xxxxxxxx
