Original Launch X431 Auto iDiag scanner for IPAD and Iphone

Original Launch X431 Auto iDiag scanner for IPAD and Iphone

How to use X431 Auot Diag on iphone Ipad Ipod touch?

Step 1:Install Terminal Software
Firstly,open Appstore on your Iphone,and then search X431,in the search result
click one area to install,like X431 china,about which area you select,it depends
on your location.

Step 2:Connect X431 Auto Diag diagnostic connector with car and
iphone ipad ipod touch
a. Connect X431 Auto Diag diagnostic connector with car
Plug DBscar interface near the steering wheel as the following picture shows.
And then open X431 Auto Diag,turn on the ignition of the car.

b: Connect X431 Auto Diag diagnostic connector with iphone ipad ipod touch
Open the Bluetooth of Iphone to search the device,name of device Bluetooth is
diagnostic connector serial number;matching Bluetooth does not need password.


Step 3:Register CC number
After connect well diagnostic connector,open the diagnostic software installed
in your iphone (ipad ipod touch),click"settings"on upper right corner to enter and
register CC number as the following picture shows:

Step 4:Connector Registration
After login,click"connector registration""settings"(register X431 Auto Diag diagnostic connector into CC account).Diagnostic connector serial number will automatically get,if not,please exist
software and enter again or manually input connector serial number (SN is marked on DBScar
connector).
 Click serial number and is box of X431 Auto Diag you open password letter to get password.
Finish registration as the following pictures shows.

Step 5:Pay the software (you are allowed to pay on the PC)
After finish registering x431 Auto diag,please click "get the software",log in with CC
number and password.Then go to the page for ordering the software,select software
according to the car model,you are available to buy multiple software as you want.

 Step 6:Download the software

Step 7:Now you are ready to use Launch Auto Diag to diagnose car models
Back to the page of car models selection and click car model icon you paid.You are ready to diagnose.

iDiag Functions:

1. OBDII full function
2. Search and help OBDII DTCs, display data stream graph
3. Support record and playback the tested data stream
4. Support basic diagnostic function for all systems of one single vehicle model
5. Support basic diagnostic function for all systems of multiple vehicle models
6. Support basic diagnostic function for all systems of all vehicle models
7. Create maintenance database
8. "My zone" functions
9. Establish public and private maintenance social circle
10. Provide instant information
11. Support online update

Unit Car Model: 66USD

Asia Car Software Bundle: 699usd Total 42 Car Models

Asia Car Software Bundle List:
for Acura,for Changan,for ChangCheng,for Daewoo,for Daihatsu,for Flyer,for Australia Ford, for Hafei,for HaoQing, for Holden,for Honda,for HuaChen,for Hyundai,for Infiniti,for Isuzu,for Jacty,for Jiao,for JinLong,for JPIsuzu,for Kia, for Lexus,for Luwei_TY,for Mahindra,for  Maruti,for Mazda,for Mitsubishi,for Nissan, for Perodua,for  Proton, for Qirui_TY, for SSANGYONG, for Subaru,for Suzuki,for Tata,for TLIsuzu,for Toyota,for Xiali,for ZhongShun,for ZhongTai and ZhongXing.


European and USA Car Software Bundle: 799USD Total 31 car models

European and USA Car Software Bundle List:
for Benz,for BMW,for VW,for Peugeot,for Renault,for Citroen,for Opel,for Audi,for Smart,for EURO Ford, for Fiat, for Landrover,for Seat,for Skoda,for Rover, for Saab,for Jaguar,for Lancia, for Romeo,for Dacia,for Mini, for GMSA,for VAZ, for Volvo,for GM,for BXGM,for Chrysler, for GAZ, for Porsche,for Sprinter and for USAFORD.

Original Launch X431 iDiag Auto Diag Scanner for Padmini OBD2 Code Creader
Highlights:

1. Languages: English, French, Russian, Japanese, German, Spanish, Italian, Portuguese, Chinese
2. Original Launch X431 iDiag User Manual
3. X431 Auto Diag Update Online at Launch website
4. Launch X431 Auto Diag scanner will not come with software in the package, only hardware. You need to buy diagnostic software
Unit Car Model: 66USD
Asia Car Software Bundle: 699usd Total 42 Car Models
Asia Car Software Bundle List: Acura, Changan, ChangCheng, Daewoo, Daihatsu, Flyer, Australia Ford, Hafei, HaoQing, Holden, Honda, HuaChen, Hyundai, Infiniti, Isuzu, Jacty, Jiao, JinLong, JPIsuzu, Kia, Lexus, Luwei_TY, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perodua, Proton, Qirui_TY, SSANGYONG, Subaru, Suzuki, Tata, TLIsuzu, Toyota, Xiali, ZhongShun, ZhongTai and ZhongXing.
European and USA Car Software Bundle: 799USD Total 31 car models
European and USA Car Software Bundle List: Benz, BMW, VW, Peugeot, Renault, Citroen, Opel, Audi, Smart, EURO Ford, Fiat, Landrover, Seat, Skoda, Rover, Saab, Jaguar, Lancia, Romeo, Dacia, Mini, GMSA, VAZ, Volvo, GM, BXGM, Chrysler, GAZ, Porsche, Sprinter and USAFORD.

Packing List:
1pc x X431 iDiag Auto Diag scanner main unit
1pc x OBD2 Cable
1pc x Password paper
1pc x mini ipad case
1pc x Carrying box



About how to register, how to pay the software and how to download the software, go on reading the next paragraph.


How to use X431 Auot Diag on iphone Ipad Ipod touch?


X431 Auot Diag iOS requirements:
X431 Auot Diag works with iphone ipad ipod touch with iOS 5.0 or above iOS 5.0.

Attention:Launch X431 Auto Diag scanner will not come with software in the
package,only hardware.But we will offer you the Launch X431 register name
& password.You need to buy diagnostic software directly from Launch official
website.

Price for different cars:
American cars 199USD
Asian cars 299USD
European cars 399USD
66usd per car make.

Launch X431 Auto Diag Package including:
1pc x X431 Auto Diag Scanner main unit
1pc x OBD2 Adapter
1pc x Connect cable


How to use X431 Auot Diag on iphone Ipad Ipod touch?

Step 1:Install Terminal Software
Firstly,open Appstore on your Iphone,and then search X431,in the search result
click one area to install,like X431 china,about which area you select,it depends
on your location.

Step 2:Connect X431 Auto Diag diagnostic connector with car and
iphone ipad ipod touch
a. Connect X431 Auto Diag diagnostic connector with car
Plug DBscar interface near the steering wheel as the following picture shows.
And then open X431 Auto Diag,turn on the ignition of the car.

b: Connect X431 Auto Diag diagnostic connector with iphone ipad ipod touch
Open the Bluetooth of Iphone to search the device,name of device Bluetooth is
diagnostic connector serial number;matching Bluetooth does not need password.


Step 3:Register CC number
After connect well diagnostic connector,open the diagnostic software installed
in your iphone (ipad ipod touch),click"settings"on upper right corner to enter and
register CC number as the following picture shows:

Step 4:Connector Registration
After login,click"connector registration""settings"(register X431 Auto Diag diagnostic connector into CC account).Diagnostic connector serial number will automatically get,if not,please exist
software and enter again or manually input connector serial number (SN is marked on DBScar
connector).
 Click serial number and is box of X431 Auto Diag you open password letter to get password.
Finish registration as the following pictures shows.

Step 5:Pay the software (you are allowed to pay on the PC)
After finish registering x431 Auto diag,please click "get the software",log in with CC
number and password.Then go to the page for ordering the software,select software
according to the car model,you are available to buy multiple software as you want.

 Step 6:Download the software

Step 7:Now you are ready to use Launch Auto Diag to diagnose car models
Back to the page of car models selection and click car model icon you paid.You are ready to diagnose.


Berminat Hubungi  :
Nama   : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
  Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Super Auto Code Reader Launch CReader VI Plus + JOBD OBD2 100% Original CReader VI Plus Diagnostic Tool 100 % Original

Super Auto Code Reader Launch CReader VI  Plus + JOBD OBD2 100% Original CReader VI Plus Diagnostic Tool  100 % Original

Rp. 1.750.000,-

 Produk Pendahuluan:
Creader VI + (code reader) adalah alat diagnostik kerusakan mobil otomotif bai yang lama maupun yang baru dan dirancang khusus untuk pengguna dan pemeliharaan mobil agar dapat mendapatkan data yang akurat, Mengingat fungsinya yang sangat optimal yaitu untuk mobil JOBD dan EOBD launch Creader Plus layak dimilikki oleh bengkel besal dan kecil ,  Produk ini telah menggunkan LCD warna, dengan desain menu fungsi yang sangat mudah digunakan (user-friendly), Disamping itu dukungan penuh JOBD & EOBD serta OBD2 sehingga sangat cocok sekali untuk kendaraan Eropa maupun Japan dengan dukungan dan yang tidak kalah pentingnya alat ini mendiagnosa lebih efisien.dan lebih cepat serta akurat

Launch CReader VI Plus Diagnostic Tool creader 6+ code reader update on line

 Product Introduction:
Creader VI+ (code reader) is a new automotive fault diagnostic tool that Launch specially designed for DIY user and maintenance personnel of small auto repair shops. This product has applied color LCD, user-friendly function menu design, supporting full functions of OBD&EOBD vehicle and basic diagnostic functions of eight Japanese brands JOBD vehicles, with multi-languages and LED diagnostic status indication, which greatly improves the operability of product. It has applied whole new product platform, which makes Creader VI+ (code reader) run fast and diagnose more efficient.

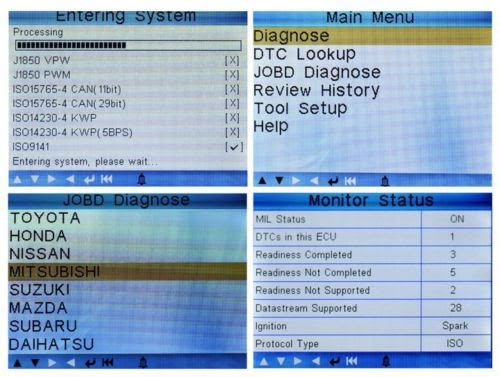

Product functions:
• JOBD basic diagnostic functions
• Read fault code
• Clear fault code
• Read data streams
• OBDII full diagnostic functions
• Read dynamic data streams
• MIL indication
• Readiness status testing
• Query freeze frame
• Read current fault code
• Clear fault code
• Oxygen sensor detection testing
• On-board monitoring test for specific monitored systems
• Read pending fault code
• Read control of on-board systems or components
• Read vehicle information
• Read permanent fault code
• Query fault code
• Play back test data


Rp 1.750.000,-

Product parameters:
• Screen: 2.8", 262K true color, 320*240 LCD
• Input voltage range: 8-32V
• Operating current: typically <100mA 12V
• Typical power consumption: <1.2W
• Wire connection: standard 16Pin OBD diagnostic connector
• Environmental temperature: 0 ~ 50
• Storage temperature and humidity: -20 - 70 RH 60%
• External dimension: L*W*H=121*82*26mm
• Single unit: <500g

Packing list:
• 1* Launch Creader vi+ main unit
• 1*USB cable
• 1*Launch Creader vi+ User manual

2015 Super Auto Code Reader Launch CReader VI+ Support JOBD / OBD2 100% Original CReader VI Plus version free shipping

Launch CReader VI Plus Diagnostic Tool creader 6+ code reader update on line

 Product Introduction:
Creader VI+ (code reader) is a new automotive fault diagnostic tool that Launch specially designed for DIY user and maintenance personnel of small auto repair shops. This product has applied color LCD, user-friendly function menu design, supporting full functions of OBD&EOBD vehicle and basic diagnostic functions of eight Japanese brands JOBD vehicles, with multi-languages and LED diagnostic status indication, which greatly improves the operability of product. It has applied whole new product platform, which makes Creader VI+ (code reader) run fast and diagnose more efficient.



Berminat Hubungi  :
Nama  : Agus yulianto
Alamat  : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
     Plosogeneng Jombang, 61416 Jawa Timur
Telp  : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI



Rp  1.750.000

2015 New Launch X431 IV Master Professional Auto Diagnostic Tool Scanner

2015 New Launch X431 IV Master Professional Auto Diagnostic Tool Scanner

Introduction:

X-431 IV is an classic,economical,simple,steady vehicle diagnostic tool newly released by Launch. It follows the open platform of X431 series, also it inherits many advantages of X431 including a wide coverage of vehicle models, powerful testing functions and accurate test data. At the same time,the unique rotatable diagnostic connector design is convenient for use's operating.It's a cost-effective diagnostic product on the market.


Feature:

a)Diagnostic functions: trouble diagnosis of automotive ECU's; (Features including: read trouble code, clear trouble code, read data stream and special features), the diagnostic software completely consistent with that of X431, fully inherited the advantages of X431 including wide coverage of vehicle models and high precision test;
b)PDA functions: (handwriting with stylus, personal data management, English-Chinese dictionary, etc.);
c)Optional functions: creation of repair files and access to maintenance data);
d)Mini printer (can be used with X431PCCENTER to connect to the computer for storage of vehicle test data )

Specification:

Operating system: LINUX operating platform
Memory: 16MB
CF card: 1GB
Host power supply: DC12V
Host power: about 9W
Printer: Mini high-speed thermal printer
Display: large 240  320 touch inductive LCD screen, with backlight
Ambient temperature :-10-55
Relative Humidity: <90%
Product Dimension: 198mm  316mm  55.5mm


Car List:

Demo,Smart diagnostic software,Smart OBDII
America: America Ford,Chrysler,GM,Acrus,INFINITI,Lexus.

Australia: Australia Ford,Holden

Brazil: Brazil GM

India: Indonesia Daihatsu,Indonesia Suzuki,Mahindra,MARUTI,TATA

Japan: Daihatsu,Honda,JPIsuzu,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota

Europe: Audi,Benz,BMW,Citroen,Europe Ford,Fiat,Jaguar,Lancia,Landrover,Opel,Peugeot,
Porsche,Renault,Romeo,Rover,Saab,Seat,Skoda,Transporter&V-Class,Volkswagen,Volvo

China: Brilliance,BYD,Changan,ChangCheng,Changhe,Chery,GEELY,Gonow,HaFei,JAC,
Jiangling,SGMW,Tianjin,Xiamen Golden,XinKai,ZhongShun,Zhongxing,ZOTYE

Korea: Daewoo,Hyundai,Kia,Ssangyong

Malaysia: Perodua,Proton

Russia: GAZ,VAZ

S.Africa: S.Africa Opel

Thailand: Thailand Isuzu



Berminat Hubungi  :
Nama  : Agus yulianto
Alamat  : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
     Plosogeneng Jombang, 61416 Jawa Timur
Telp  : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

DC Step Down Converter Step down Adjustable Power Module Charge

DC Step Down Converter  Step down Adjustable Power Module Charge

Rp.   125.000

DC Step Down Converter

Specification:

Highlights:
• Contains the voltmeter, ammeter, power meter, USB interface for charging the digital products.
Note:
1. When you use the product, the module inputs and outputs to be isolated from ground.
2. USB output voltage is consistent with the module, not a fixed 5V output. When charging for digital equipment, make sure the USB output voltage is 5V.
3. Some customers report: "The module can not adjust the output voltage is always equal to the input voltage." When you encounter this problem, please counterclockwise rotation of the "voltage potentiometer" 10 laps or more, then use the module you can adjust the output voltage. Because the factory default output voltage of about 20V.
•
Specifications:
• Input voltage range: 5-36VDC
• Output voltage range: adjustable 1.25-32VDC
• Output current: 0-5A
• Output power: 75W
• High efficiency up to 96%
• Built in thermal shutdown function
• Built in current limit function
• Built in output short protection function
• Input reverse polarity protection: None (if required, high current diode in series with the input).
• Size: 6.8CM x 3.9CM x 1.5cm.

Application:

1.Use as a step-down modules with overcurrent protection:
• (1) Adjust the right button so that “OUT” LED lighted, Digital meter shows the value of output voltage ,adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
• (2) Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the “current potentiometer” so that the output current reaches a predetermined overcurrent protection value. (For example, the Digital meter displays the current value of 4A, then you can use the module to a maximum current of 4A).
• (3) Connected to the load.
3.Use as a LED constant current driver module:
• (1)Adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
• (2)Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the “current potentiometer” so that the output current reaches a predetermined LED operating current.
• (3)Connect LED, work.
• (1,2 steps as: Output is unloaded, do not connect LED).

Voltmeter and ammeter calibration method:
(1) Output voltage calibration steps:
• Step 1, adjust the right button so that “OUT” LED lighted, Digital meter shows the value of output voltage; Press the right button for more than 2 seconds, release, Digital meter and “OUT” LED flashes in synchronization so that you enter the output voltage calibration mode.
• Step 2, press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press.
• Step 3, press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save.
(2) Input voltage calibration steps:
• Step 1, adjust the right button so that “IN” LED lighted, Digital meter shows the value of input voltage; press the right button for more than 2 seconds, release, Digital meter and “IN” LED flashes in synchronization so that you enter the input voltage calibration mode.
• Steps 2 and 3, consistent with the output voltage calibration method.
(3)Output current calibration steps:
• Step 1, adjust the right button so that Digital meter shows the value of output Current. Press the right button for more than 2 seconds, release, Digital meter flashes in synchronization so that you enter the output current calibration mode.
• Step 2,Connected to the load, ammeter in series, adjust the right and left button to change the display of digital meter, so that is consistent with the ammeter display.

100% Brand New
1 x 5A CC / CV Step-down Adjustable Power Module Charge


Berminat Hubungi  :
Nama   : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
    Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Professional OBD2 Scan Tool For NISSAN Scanner untuk Nissan, Nissan Consult 3 Diagnostic

Professional OBD2 Scan Tool For NISSAN Scanner untuk Nissan, Nissan Consult 3 Diagnostic

Rp. 3.800.000

Fungsi:
1. Diagnosis sisten dengan cepat atau perbaikan system secara otomatis
2. Pemilihan komunikasi dengan CAN secara otomatis dan akurat serta identifikasi kerusakan dengan sangat cepat 17 kali lebih cepat daripada metode sebelumnya,dimana sistem diagnostik harus dilengkapi dengan layanan manual.
3. Perbaikan yang melibatkan pemrograman ulang atau flas ecu pada kendaraan dapat diselesaikan dengan mudah
4. Automated Self-Diagnostik, Sistem ini mampu melakukan diagnosis yang akurat tanpa harus bergantung pada kemampuan diagnostik staf teknis maka alat ini layak untuk dimiliki mengingat sangat  efisiens
5. Dengan antarmuka komunikasi nirkabel kendaraan, adalah mungkin untuk memeriksa kondisi kendaraan baik dari dalam atau di luar kendaraan.
6. dealer dapat mengakses jaringan Nissan untuk mengambil kedua teknologi data pemeliharaan terkait dengan hasil diagnosis dan tempat informasi yang cukup tentang layanan manual.
7. Dealer juga dapat mengakses database layanan mereka historis pemeliharaan kendaraan pada PC laptop.
8. Mampu menangani beberapa cacat kompleks, Alat diagnostik ini dilengkapi dengan berbagai fungsi termasuk simultan diagnosis diri dari keseluruhan sistem, data secara serempak monitor untuk beberapa sistem, perekam data, dan kemampuan osiloskop.
9. Peningkatan pengelolaan data dengan perbaikan PC laptop, fitur baru seperti penerapan warna layar dan monitor besar layar memungkinkan melihat sejumlah besar informasi sama sekali untuk manajemen data ditingkatkan
10. Peta fungsi update data untuk sistem navigasi hard-disk, Melalui kecepatan tinggi sistem update data, adalah mungkin untuk memperbarui data peta di sekitar 20 menit dengan sistem navigasi CARWINGS baru (hard-disk) dilengkapi di Skyline semua-baru dan produk masa depan lainnya.



Berminat Hubungi  :
Nama   : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
   Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Rp 3.800.000



Professional OBD2 Scan Tool For NISSAN CONSULT 3 Interface Without Bluetooth

Nissan Consult 3 Professional Diagnostic Tool

Function:
1. Swift diagnosis and swift repairs through automated operations
2. The selection of CAN type as well as the identification of malfunction locations are completely automated, allowing CAN diagnosis to be done 17 times faster than previous method where the diagnostics system needed to be supplemented by the service manuals. Repairs involving reprogramming of the in-vehicle computer can be completed
3. 5 to 2.5 times faster with the new system.
4. Automated Self-Diagnostics, The system is able to perform accurate diagnosis without having to rely on the diagnostic skills of technical staff at the dealership.Increased efficiency in operations based on wireless technology.,  With wireless vehicle communication interface, it is possible to check the condition of the vehicle from either  inside or outside the vehicle. At dealerships in Japan, it is possible to access the Nissan network to retrieve both the maintenance technology data related to the diagnosis results and spot adequate information on service manual. The dealerships are also able to access their service database and refer to the vehicle’s maintenance history on the laptop PC.
5. Capable of handling multiple complex defects, The diagnostics tool is equipped with various functions including simultaneous self-diagnosis of an entire system, simultaneous data monitor for multiple systems, data recorder, and oscilloscope capability.
6. Enhanced data management with improved laptop PC, New features such as adoption of color-screen and large-screen monitor allow viewing of large amounts of information altogether for enhanced data management
7. Map data update function for hard-disk navigation system, Through high-speed data update system, it is possible to update map data in approximately 20 minutes with the new CARWINGS navigation system (hard-disk) equipped in the all-new Skyline and other future products.

(1) CONSULT:Computerized On-Board System Universal Tester., CONSULT introduced in 1989, CONSULT-II introduced in 1999. CONSULT-III is 3rd generation model.
(2) Communication distance: radius of 5m approx., Special  function:Now consult 3 can do GTR,but it needs customers have GTR card.

Specification:
Language:English,Finnish,French,German,Greek,Italian,Japanese,Spanish,Chinese(TraditionalChinese(simplified),Russian.
Dimension:30CM*23CM*10CM

Berminat Hubungi  :
Nama   : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
  Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI



Rp 3.800.000

DC Motor Speed PWM dengan Display Regulator Controller Switch With digital Display

DC Motor Speed PWM dengan Display  Regulator Controller Switch With  digital Display

PWM dengan Display DC 6V-30V 6V 12V 8A Max PWM DC Motor Speed Regulator Controller Switch With  digital Display

Description

• 100% brand new and high quality.

• Input supply voltage: 6V-30V DC

• Output current: Rated current 5A (8A MAX, can not be prolonged)

• PWM frequency: 16kHz

• Duty Cycle adjustable: 0%-100%

• The digital display the duty ratio

• Dimension:97*42*24mm

• The Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.

• The motor speed controller can easily provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes the function of digital display whose digital tube display the duty ratio

Package included

• Digital display Led 6V 12V 24V 8A Dc motor speed regulator PWM speed controller

description

• The Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.The motor speed controller can easily provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes the function of digital display whose digital tube display the duty ratio

• 100% brand new and high quality

• Input supply voltage: 6V-30V DC

• Output current: Rated current 5A (8A MAX, can not be prolonged)

• PWM frequency: 16kHz

• Duty Cycle adjustable: 0%-100%

• The digital display the duty ratio

• Size(L*W*H):7.8x4.2x2.5cm/3.07"x1.65"x0.98"(approx)

Berminat Hubungi :

Nama : Agus yulianto

Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08

   Plosogeneng Jombang, 61416 Jawa Timur

Telp : 081332787811

Web  :

www.obd2jatim.com

Blog  :

http://Toolsteknik.blogspot.com

http://obd2murah.blogspot.com

http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim

https://www.facebook.com/obd99

Lokasi toko/rumah Google map

https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI

Tes Tekanan kompresi mesin diesel Cylinder Pressure Gauge dan oil pressure

Tes Tekanan kompresi mesin diesel Tester  Diesel Cylinder Pressure Gauge dan oil pressure Gauge 1000psi

• Cek kompresi mesin diesel dalam kondisi cranking
• Adapter kopling Kecil yang bertujuan untuk kecepatan dan keamanan
• Selang Fleksibel (355 mm) memberikan akses injektor port
• Skala Ganda 80 mm Gauge diameter atau 2 skala 0-1000 Lb / Di dan 0-70 bar
• Untuk Tes Tekanan Kompresi  Diesel Direct dan In-Direct Mesin

Kit dilengkapi dengan Berbagai Macam tipe adaptor jadi bisa digunakan untuk semua mobil diesel baik Direct dan In-Direct
• Injector Adapter 75mm Panjang dengan M20 x 1,5 Thread
• Injector Adapter 73mm Panjang dengan M22 x 1,5 Thread
• Injector Adapter 88mm Panjang dengan M24 x 1,5 Thread
• Injector Adapter 63mm Panjang dengan M24 x 2.0 Thread
• Glowplug Adapter- 83mm Panjang dengan M10 x 1.0 Thread
• Glowplug Adapter- 91mm Panjang dengan M10 x 1.0 Thread
• Glowplug Adapter- 102mm Panjang dengan M10 x 1.0 Thread
• Glowplug Adapter- 113mm Panjang dengan M10 x 1.0 Thread
• Glowplug Adapter- 119mm Panjang dengan M10 x 1.0 Thread
• Glowplug Adapter- 65mm Panjang dengan M10 x 1,25 Thread
• Glowplug Adapter- 135mm Panjang dengan M10 x 1,25 Thread
• Glowplug Adapter- 47mm Panjang dengan M12 x 1,25 Thread
• Glowplug Adapter- 118mm Panjang dengan M22 x 1,50 Thread
• Dibentuk kasus dipasang
• Selang dilengkapi pelindung panas jadi lebih kuat dan kokoh


Berminat Hubungi  :
Nama : Agus yulianto
Alamat : Perum Puri Astapada Indah 2 Blok K/6 RT/RW 03/08
   Plosogeneng Jombang, 61416 Jawa Timur
Telp : 081332787811

Web  :
www.obd2jatim.com

Blog  :
http://Toolsteknik.blogspot.com
http://obd2murah.blogspot.com
http://agusyulianto2.blogspot.com

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99

Lokasi toko/rumah Google map
https://mapsengine.google.com/map/edit?mid=zjc70vmO4kjU.kmbc15SqC4NI



Rp. 2.500.000


universal type automobile oil pressure gauge,diesel cylinder pressure gauge,cylinder testing gauge,auto repair tool high quality

Diesel Cylinder Pressure Gauge Good Quality

universal type automobile oil pressure gauge,diesel cylinder pressure gauge,cylinder testing gauge,auto repair tool high quality1.diesel Cylinder pressure gauge

Professional Diesel Compression Pressure Tester Gauge 1000psi

• Checks diesel engine compression under cranking conditions
• Small profile, quick coupling adapters: for speed and security
• Flexible hose (355 mm) gives access to restricted plug and injector ports
• Dual scale 80 mm diameter Gauge 0 - 1000 Lb/In and 0 - 70 bar
• DIESEL Direct and In-Direct Engine Compression Pressure Tester
• Kit comes complete with adapters for both direct and indirect diesel injected cars engine
• Checks diesel engine compression under cranking conditions
• Small profile, quick coupling adapters: for speed and security
• Built-in pressure relief valve: enables repeat tests without dismantling
• Flexible hose (355 mm) gives access to restricted plug and injector ports

Contents:  80mm Dial 1000 PSI, 70 bar Gauge Assembly with hand grip protective rubber boot
• Injector Adapter 75mm Length with M20 x 1.5 Thread
• Injector Adapter 73mm Length with M22 x 1.5 Thread
• Injector Adapter 88mm Length with M24 x 1.5 Thread
• Injector Adapter 63mm Length with M24 x 2.0 Thread
• Glowplug Adapter- 83mm Length with M10 x 1.0 Thread
• Glowplug Adapter- 91mm Length with M10 x 1.0 Thread
• Glowplug Adapter- 102mm Length with M10 x 1.0 Thread
• Glowplug Adapter- 113mm Length with M10 x 1.0 Thread
• Glowplug Adapter- 119mm Length with M10 x 1.0 Thread
• Glowplug Adapter- 65mm Length with M10 x 1.25 Thread
• Glowplug Adapter- 135mm Length with M10 x 1.25 Thread
• Glowplug Adapter- 47mm Length with M12 x 1.25 Thread
• Glowplug Adapter- 118mm Length with M22 x 1.50 Thread
• Formed fitted case
• Heat shielded, reinforced hose
