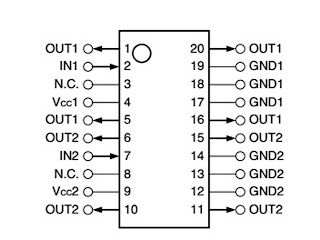

D 166104 D166104GS SOP20 IC Car Computer Chips

D 166104 D166104GS SOP20 IC Car Computer Chips

166104 D166104GS SOP20 Car Fuel Injection Driver Chip For Toyota
D166104GS ECU board drive IC is automotive Computer ECU Module drive chip, it is easily damaged parts on Auto ECU Circuit Board, D166104GS Auto drive IC can repair damaged automotive ECU drive chip.

D166104GS Auto computer board driver chip Auto ECU IC

Package Include :
1 X D166104GS SOP20

SSD103 SOP8 Motor Honda Fuel Injection IC Chip

SSD103 SOP8 Motor Honda Fuel Injection IC Chip

SSD103 SOP8 IC Chip For Honda Motor
SSD103 ssd103a SK Honda Automotive Computer Board fuel injection IC chip patch SOP8

SSD103 IC is Auto Circuit Board driver chip,
it is easily damaged parts on Auto ECU Circuit Board,
SSD103 chip can repair damaged Auto Circuit Board driver chip.

Package Include :
1 X SSD103 SOP8

Lampu Led Service plus Kaca Pembesar Cody 139 L

Lampu Led Service plus Kaca Pembesar Cody 139 L

DESCRIPTION
Lampu Servis CODY 139 LED dengan pembesaran sampai tiga kali lipat serta  Cahaya Lampu Led Servis CODY 139  sangat terang, kerangka terbuat dari bahan yang elastis dan lentur sehingga Mudah digerakan atau di tekuk sesuai keinginan para pengguna. Mengingat hal tersebut maka Lampu Servis CODY 139L Layak dimiliki oleh para teknisi baik pemula maupun profesional.
Berat (kg) : 2
Tegangan (V) : 220V + 10%
Daya (W) : 11

Package Include :
1 X CODY 139L Lampu LED

Ori Kabel Antena Parabola Tanaka 15 M

Ori Kabel Antena Parabola Tanaka 15 M Rg6 5c 2v 750 Ohm KBL 2302 05

Kabel Tanaka 15 M Rg6 5c 2v 750 Ohm  Panjang 15 M Konektor F to F
digunakan untuk antena parabola. cctv, matv, dll dan telah dilengkapi dengan connector Type F jadi tinggal pakai tidak ribet pasang connector

Package Include :
1 X Kabel Tanaka 15 M Rg6 5c 2v 750 Ohm

Kunci Sock Bintang M 9,5 Silinder head Kop Avanza Grandmax Rush

Kunci Sock Bintang M 9,5 Silinder head Kop Avanza Grandmax Rush

Kunci Sock Bintang M9,5 Silinder head Kop Avanza Grandmax Rush paling sering digunakan

untuk buka Silinder head Kop Avanza Grandmax Rush dll

Package Include :

1 X Kunci Sock Deksel Bintang M9,5

Original Digital Multimeter AVO Multitester Cody 9205D

Original Digital Multimeter AVO Multitester Cody 9205D

Multitester cody digital 9205D Auto Power Off sangat cocok untuk bengkel otomotif maupun service elektronik

Specification dan Selector :
- Tegangan Maximum antara 1000DCV  atau 700VAC
- Pengaman Sekering F 200mA 250V
- Tegangan 9Volt baterai, 1604 atau 6F22
- Tampilan LCD, 1999, Update 2 detik
- Metode Pengukuran Dual Probe intergrasi
- Suhu Operasional -10 s/d 50 C
- Indikasi Baterai lemah muncul
- Ukuran 31,5mm X 91mm X 189mm
- Berat 280gram
- DC Voltage Selector 200mV, 2V, 20V, 200V, 1000V
- AC Voltage Selector 200mV, 2V, 20V, 200V, 1000V
- Arus DC Selector 2mA, 20mA, 200mA, 20A
- Arus AC Selector 2mA, 20mA, 200mA, 20A
- Resistance selector 200 Ohm, 2K, 20KOhm, 200KOhm, 2M, 20MOhm, 200MOhm,
- Frekuwensi selector 2kHz, 20kHz
- Temperatur selector -20C, 1000 C
- Kapasitas selector 2nF, 20nF, 200nF, 2mikro F, 200 mikroF

Package list:
1 x Digital LCD Multitester Cody 9205D
2 x Test Leads
1 x Manual
1 X Baterai 9 Volt
1 X Dos

Portable Solder Uap Blower 8032 24vAC 450 Watt

Portable Solder Uap Blower 8032 24vAC 450 Watt

Solder Uap Blower 8032 dengan menggunakan adaptor trafo Input 220 Volt dan Output 15 Volt AC Power 450 Watt menjadikan blower ini sangat aman digunakan untuk repaitr ECU atau modul modul elektronik lainnya bisa dibandingan merk lain

Hot Air Gun Portable BGA SMD Repair Rework Solder Station Heat gun Welding tools 220V :
- An excellent innovation in the soldering industry.
- Uses turbine motor to achieve uniform hot air.
- Applicable for reworking of mobile screen cover. BGA, SMD and other electronic components.
- Small and superb anti-static design with many functions.
- Saves working spaces and easy to carry.

SPECIFICATIONS:
- Input Adaptor 24v trafo
- Power Consumption 450W
- Temperature Range 100 - 350 degrees Celsius
- Heating Element Metal Heating Core
- Pump/Motor Type Turbine Motor
- Air Capacity 30 L /min (max)
- Station Dimensions 7.7 diameter x 260 length (mm)
- Weight 1 Kg

Package Include :
-  Solder uap portable 8032
-  3 mata / nozzle
-  Manual
-  Adaptor
-  Karton Dos

Agus Yulianto
Perum Puri Astapada Indah 2 Blok K No:6 Plosogeneng
Kec .Jombang, Kab.Jombang, Jawa Timur 61416

Hp.  0813-3278-7811 Kantor  0321-852845

Alamat Lokasi toko/rumah Google map
https://goo.gl/maps/7NZ4HMSYvvJ2

Web  :
www.obd2jatim.com

Blog
http://ToolsTeknik.blogspot.co.id
http://Obd2Jombang.blogspot.co.id

Tokopedia
https://www.tokopedia.com/obd2

Bukalapak
https://www.bukalapak.com/agusyulianto

Facebook Agus Yuli Obd Jatim
https://www.facebook.com/obd99


275.000

Original TLE7209-2R TLE 7209R TLE 7209 Sop20 Throttle Idle Valve

Original TLE7209-2R TLE 7209R TLE 7209 Sop20 Car Computer Throttle Idle Valve

Manufacturer : Bosch, Fairchild, Infineon.
Reference To Part : Tle72092r, Tle 7209-2r, 30348, Mc33186dh1.
Encapsulation : Hssop-20.
Substitute : Infineon Tle7209-2r, Bosch 30348, Motorola Mc33186dh1.
Can Be Found : Ecu Bosch Honda, Me7.4.4, Me7.4.9, Me7.5, Me7.5.10, Me7.5.20, Me7.9.6, Me7.9.9, Med17.5, Denso Nissan, Edc16 Iveco, Edc16 Master, 4lv, 5nf, 5np, 5nr, Mjd 8f3, Multec Sprinter, Siemens Sim32, Siemens Ems3134, Valeo V42, Etc.

Pin Definitions and Functions
1  GND Ground
2  SCK/SF SPI-Clock/Status-flag
3 IN1 Input 1
4 VS CP Supply voltage for internal charge pump
5,  16 VS Supply voltage; connect pins externally
6,  7 OUT1 Output 1; connect pins externally
8  SDO Serial data out
9  SDI Serial data in
10  GND Ground
11  GND Ground
12 DMS Diagnostic-Mode selection (+ Supply voltage for SPI-Interface)
13  EN Enable
14, 15  OUT2 Output 2; connect pins externally
17  CSN Chip Select (low active)
18  DIS Disable
19  IN2 Input 2
20  GND Ground

Package Include :
1 X TLE 7209 Sop20

LNB KU Band Single Output MMP RK L828

LNB KU Band Single Output MMP RK-L828

LNB Ku Band MMP RK- L828
Lnb KU Band Single Output merek MMP tipe RK-L828

LNB Ku Band MMP RK- L828 Cocok digunakan untuk dish/antena parabola tipe offset seperti dish, Tanaka, Viva ,Ninmedia, Bekas Dish:  astro, aora tv, big tv, indovision atau telkomvision dan lainnya,,LNB ini cukup peka untuk di gunakan pada Dish parabola mini baik yang dish 45cm 60cm 80cm.
LNB Ku Band MMP RK- L828 dilengkapi seal atau penutup port LNB agar terhindar dari air hujan.

Spesifikasi
Input
- Low Band 10.7 - 11.70 GHz
- High Band 11.7 - 12.75 GHz
Output
- Low Band 950 - 1950 MHz
- High Band 1100 - 2150 MHz
L.O. Frequency
- Low Band 9.75 GHz
- High Band 10.6 GHz
Noise Figure
- Low/High Band 0.2dB
- Conversion Gain 65dB(min)

Paket Terdiri Dari :
- LNB Ku Band MMP RK-L828
- Pelindung Konektor
- Dus

Original New Reciver Receiver Gardiner G-88HD Oracle Full HD

Original New Reciver Receiver Gardiner G-88HD Oracle Full HD

Receiver Parabola Gardiner Oracle Khusus Ninmedia Ku Band
Receiver Receiver Gardiner G-88HD Oracle Full HD Rekomendasi untuk Satelit ChinaSat11 KU-BAND dirancang khusus untuk Ninmedia, dijamin semua audio sinkron dan tanpa sendat.

Produk terbaru Receiver Gardiner G-88HD Oracle Full HD dijamin gambar Super bening audio tidak delay, ditambah lagi support HDTV/SDTV/MPEG2/MPEG4/H.264, HDMI dan Port USB, Receiver Gardiner G-88HD Oracle Full HD  Rekomendasi untuk Satelit ChinaSat11 KU-BAND dirancang khusus untuk Ninmedia, semua audio sinkron dan tanpa sendat.

Package Include :
- Receiver Gardiner G-88HD Oracle Full HD
- Remote
- Kabel RCA
- Baterai Remote
- Buku Petunjuk
- Kartu Garansi
- Dos Gardiner G-88HD Oracle Full HD
